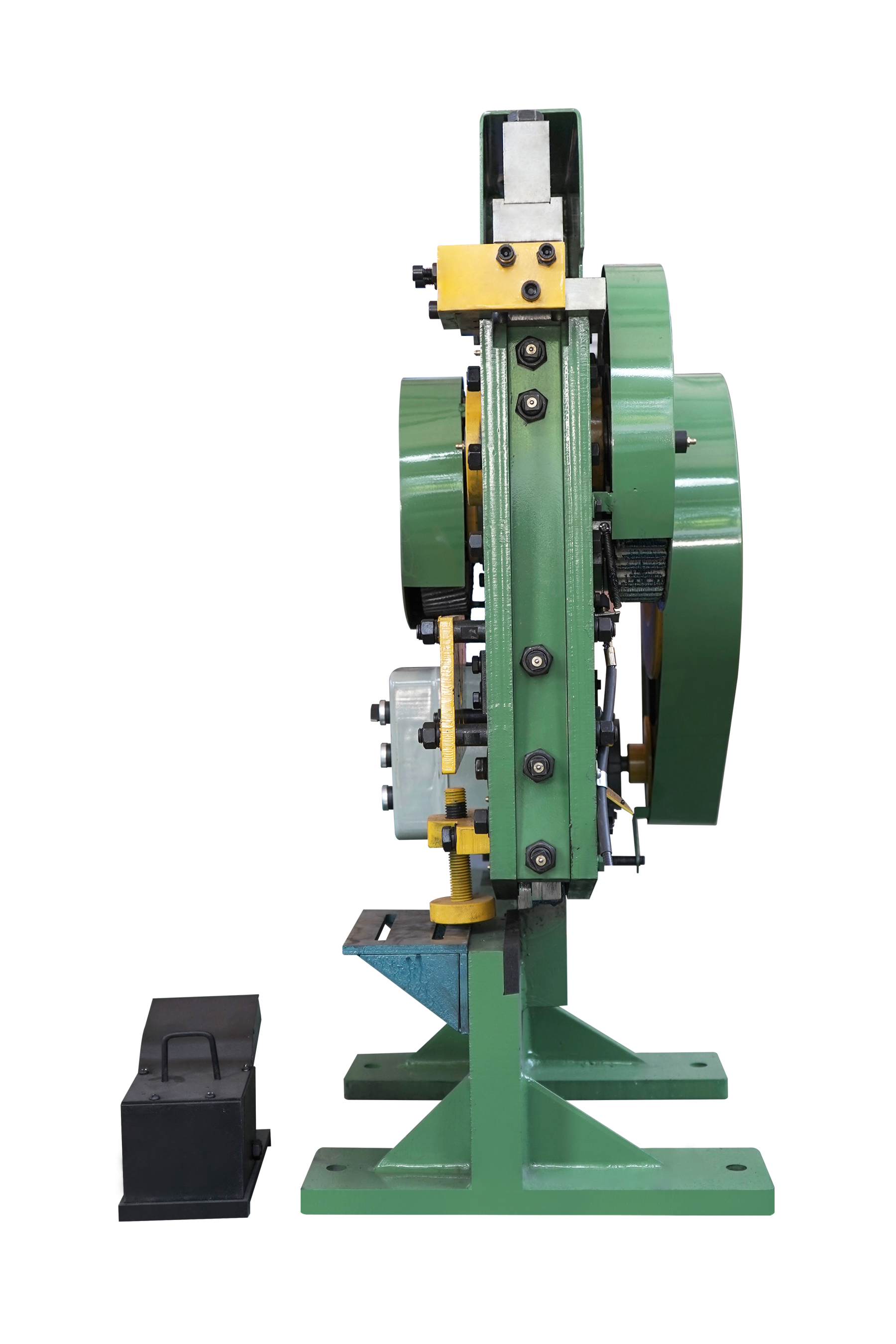

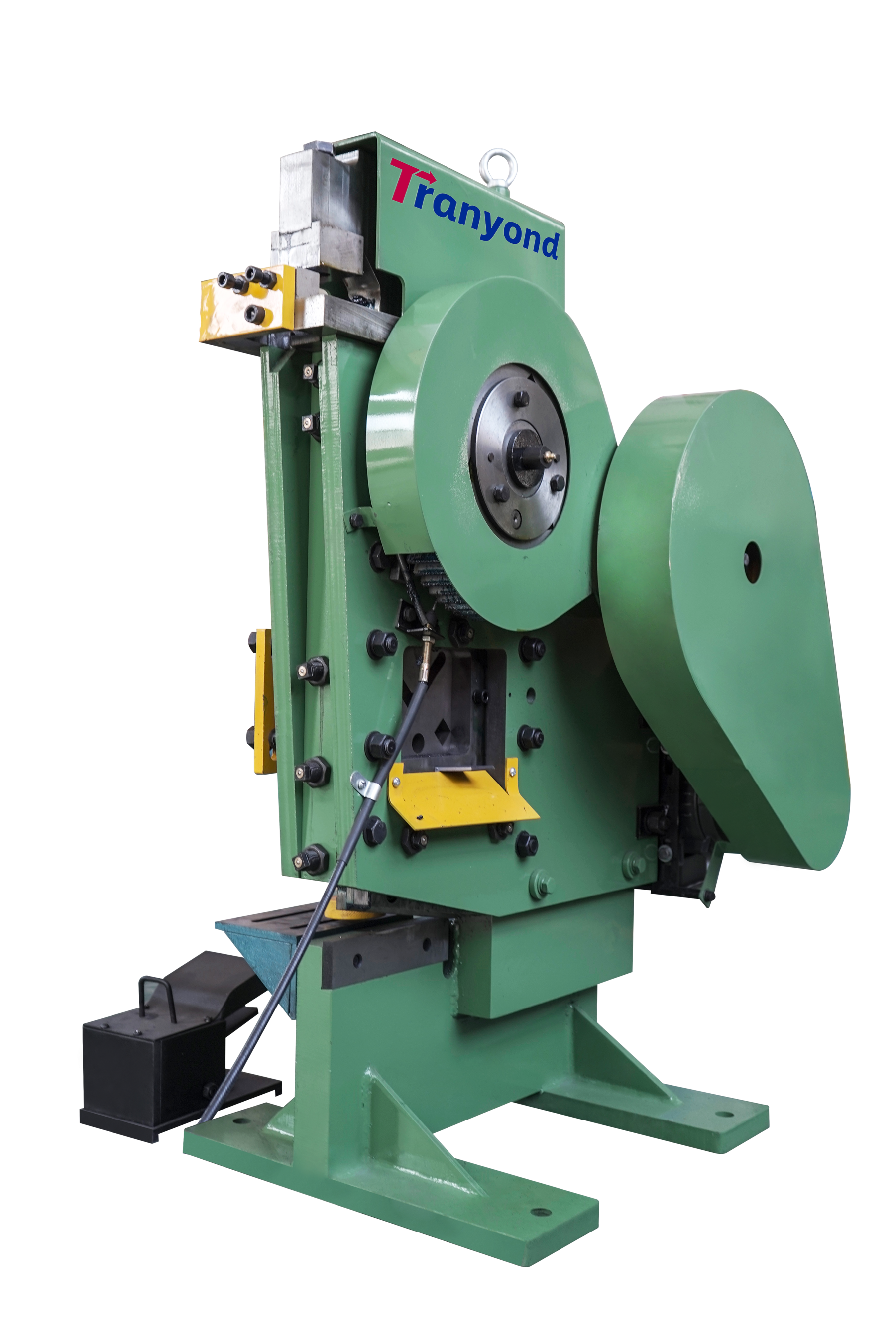

CY80 METAL PUNCHING AND SHEARING MACHINE

Technical specifications:

MAX. PUNCHING FORCE:• 360KN(37ton)

CUTTER STOKE LENGTH:• 27mm(1 3/50“)

CUTTING FREQUENCY:• 30 times/min

MOTOR POWER:• 2.2KW, 380V, 50HZ

SIZE:• 900x500x1100mm

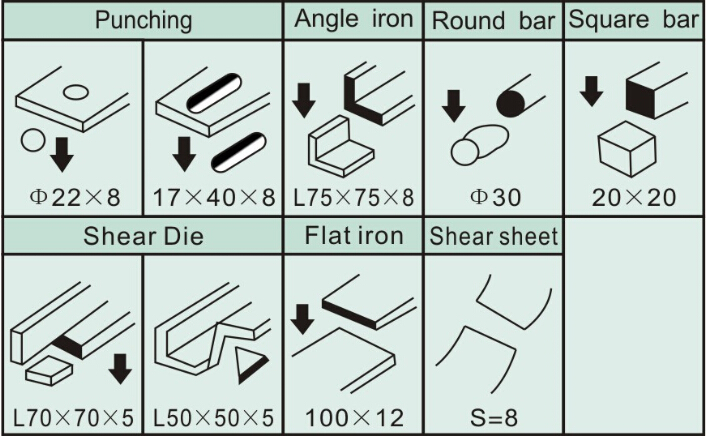

CY80 Combined metal punching and shearing machines, are used for punching of angle steel, flat iron, C channel iron, and shearing of round bar, square bar, angle steel, flat iron, C channel iron, die cut and so on, have the characteristics of novel design, beautiful shape, compact structure, reliable performance, simple operation and convenient maintenance, quite suitable for machinery manufacturing, construction and hydro-power projects.

Characteristics:
1.Adopt high quality copper wire motor, enhanced machine rack, compact structure, solid and reliable.
2.Good lubricating property.
3.Less functional loss compared wtih same type cutting machine, load power can be largely reduced.
