MF008 mark-free bending die for sheet thicknesses of 8.0–11 mm. Each section is 500 mm long.
| Model | MF008 |
| Section length | 500 mm per section |
| Sheet thickness range | 8.0–11 mm |
| Profile width | 150 mm |
| Body height | 90 mm |
| Mounting tang height | 20 mm |
| Mounting tang width | 60 mm |
Quantity 1 = one 500 mm section. For example, quantity 2 provides two separate 500 mm sections with a combined length of 1,000 mm.

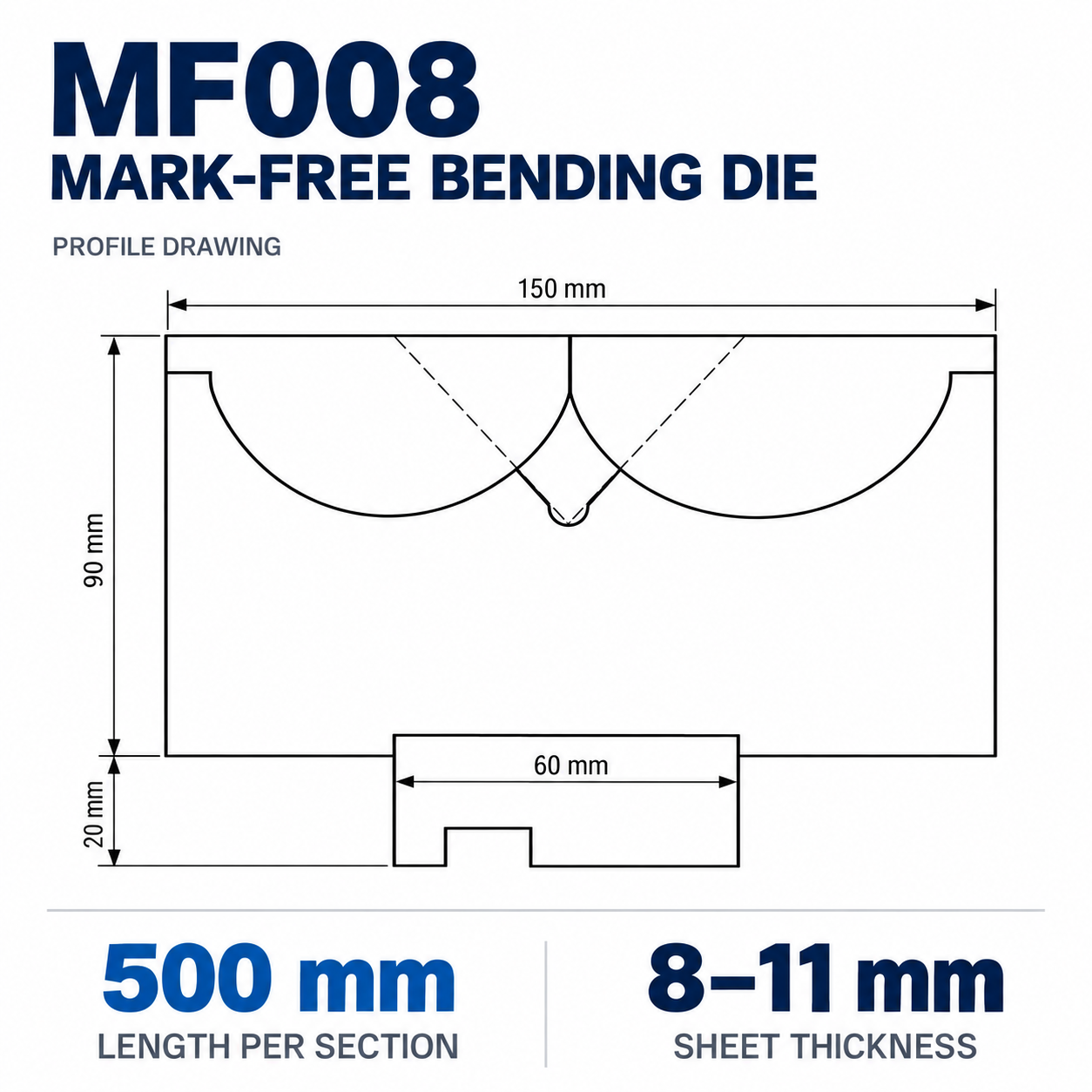

Please compare the profile and mounting dimensions in the product drawing with your press brake die holder before ordering. Contact us with your machine and application details to confirm fit.
