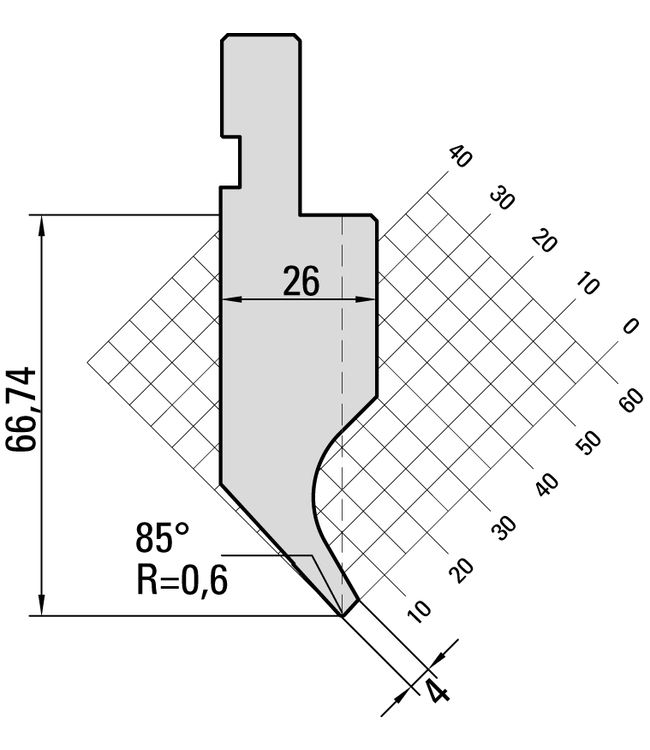

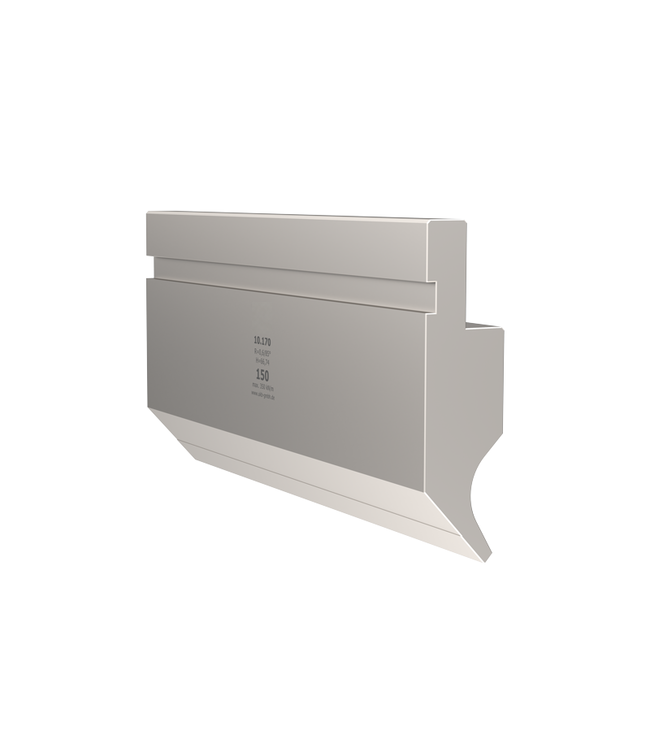

TYD-System Amada - 85° Punches/top-tools
10.170
|
|
| Tooling system | TYD-System Amada |
| Angle | 85° |
| Radius | R 0,6 mm |
| Height | 66,74 mm |
| Load | 350 kN/m max. |
| Material | C45, tempered to 800-850N/mm² |
88° Punch/top tool 10.176 on request
835 mm
415 mm
800 mm sectionalized
10 Segments with horn extension left and right
