TYD-System Bystronic - 24° Flattening punches/top tools

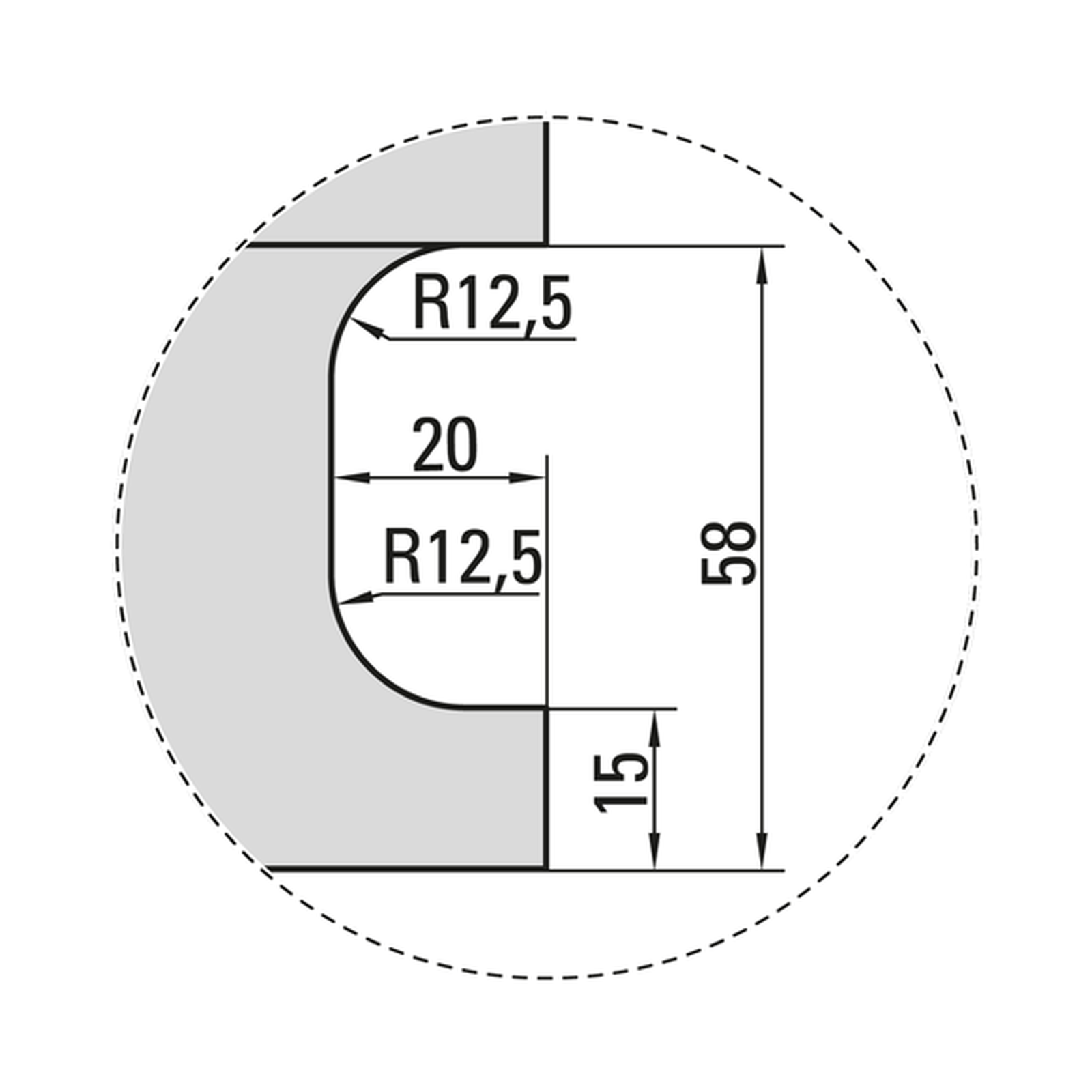

14.912
|
|
| Tooling system | TYD-System Bystronic |
| Angle | 24° |
| Radius | R 0,6 mm |
| Height | 195 mm |
| Load | 800 kN/m max. |
| Material | C45, tempered to 800-850N/mm² |
For flattening/hemming dies 25.995
Tool lengths |
|
|
||||||||
PUNCHES/TOP TOOLS
|
|
|||||||||

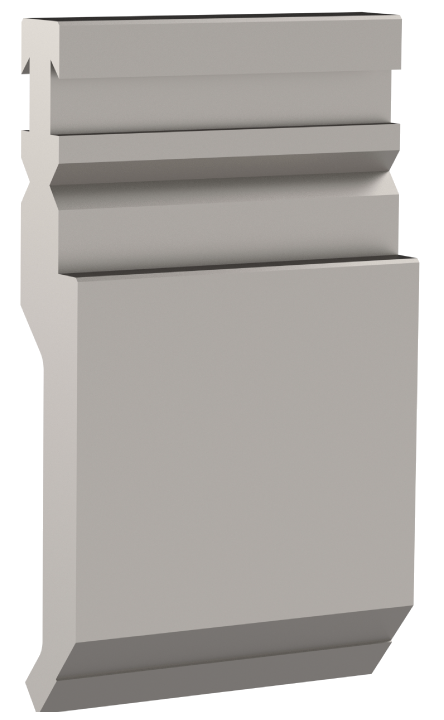

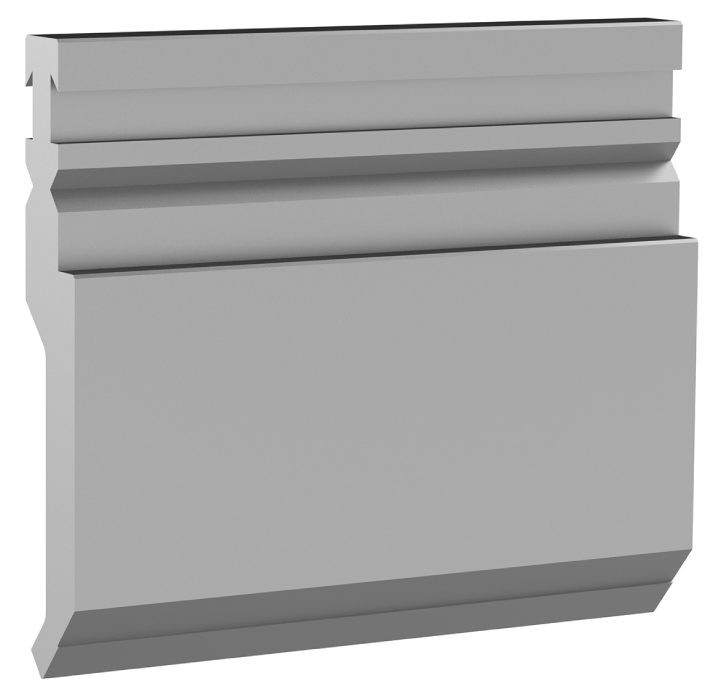

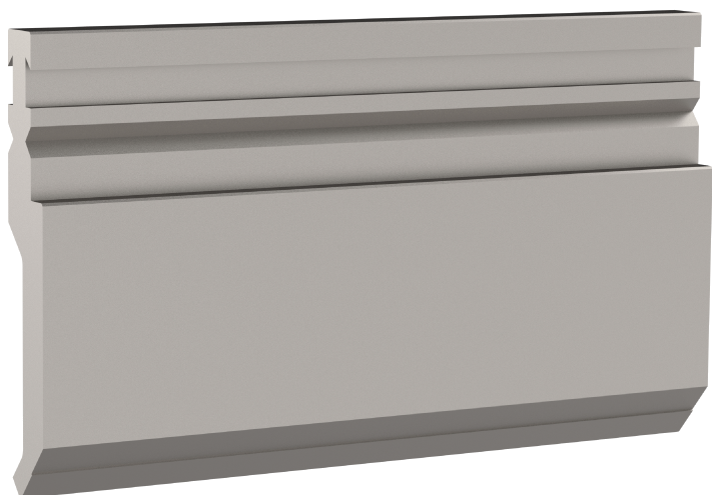

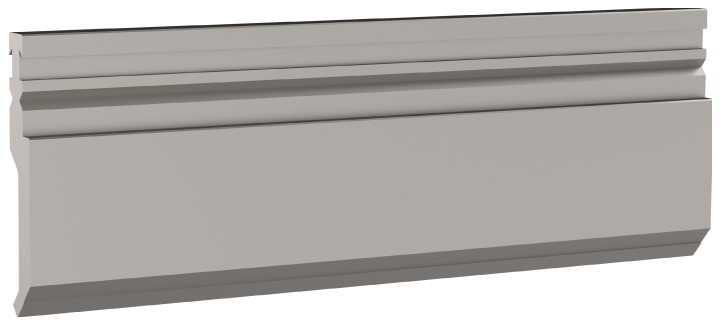

| 550 mm sectionalized | 515 mm | 300 mm | 200 mm | 100 mm | ||||||
 |
 |
 |
 |
 |
||||||

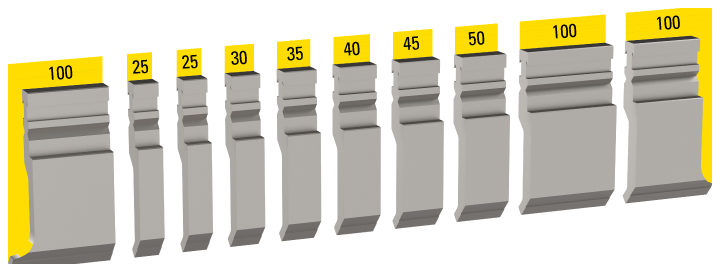

 10 Segments, with horn extension left and right |
||||||||||
|
|
||||||||||
