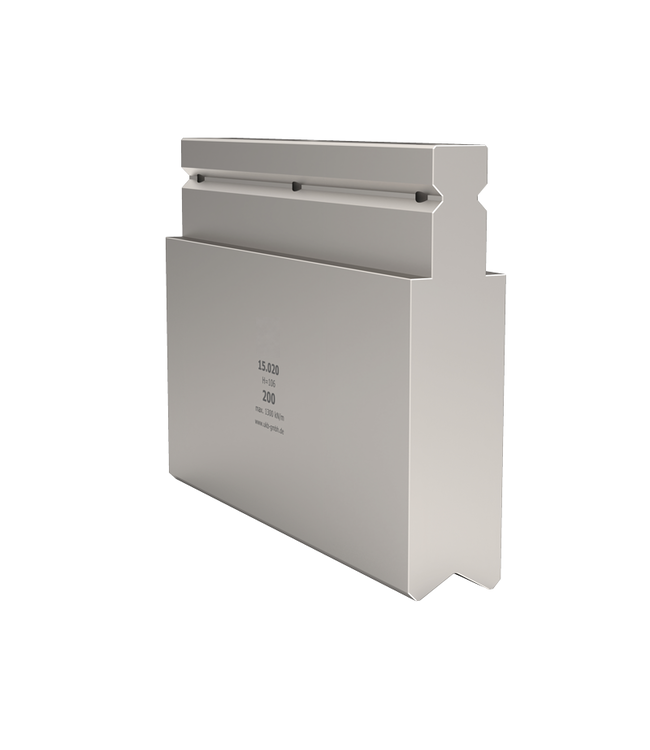

15.020 - TYD-System Trumpf/Wila/LVD - Holder for radius-tools type II, R 10,0 -25,0
L=500mm Pin
$426.51
Sale price
$426.51
Regular price
Skip to product information
15.020 - TYD-System Trumpf/Wila/LVD - Holder for radius-tools type II, R 10,0 -25,0
$426.51
Sale price
$426.51
Regular price
Clamping: Trumpf, Wila, LVD. Save your press brake and every tool page shows whether it fits.
Fits your . It clamps straight into clamping.
Fits your with an adaptor. This tool is made for Trumpf, Wila, LVD clamping.
Made for Trumpf, Wila, LVD clamping, not for your brake. See tools that fit
Not sure it fits?
Send your press brake model, or a photo of the clamp and a tool you already use. We reply with the matching part number before you order.
WhatsApp +86 153 4589 9286 or sales@metecmt.comShips worldwide from Maanshan, China. Shipping cost is shown at checkout. Pay by card, Apple Pay or Google Pay.
| Part number | 15.020 |
|---|---|
| Clamping system | Trumpf, Wila, LVD |
| Tool type | Holder |
| Height | 106 mm |
| Load rating | 1300 kN/m max. |
| Steel | 42CrMo4 |
| Configuration | 8 options |
Product description

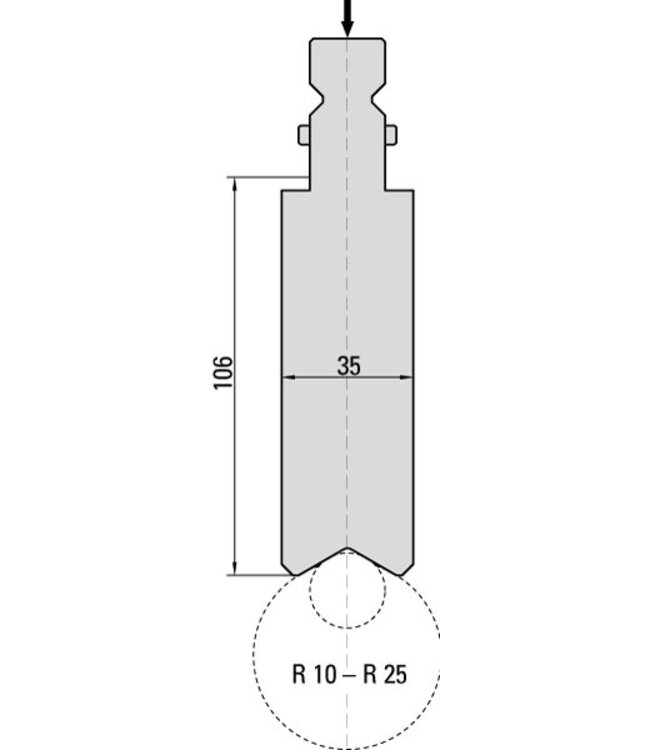

TYD-System Trumpf/Wila/LVD - Holder for radius-tools type II, R 10,0 -25,0
Information
Information
15.020
|
|
| Tooling system | TYD-System Trumpf/Wila/LVD |
| Radius | R 10,0 - 25,0 mm |
| Height | 106 mm |
| Load | 1300 kN/m max. |
| Material | 42CrMo4 |
for radius tools R 10,0 – 25,0
TYD-INFO
TYD-Holders for radius-tools and radius-tools R 3,0 - 6,5
see TYD-System Amada
Product advantages
|
|
|
||||

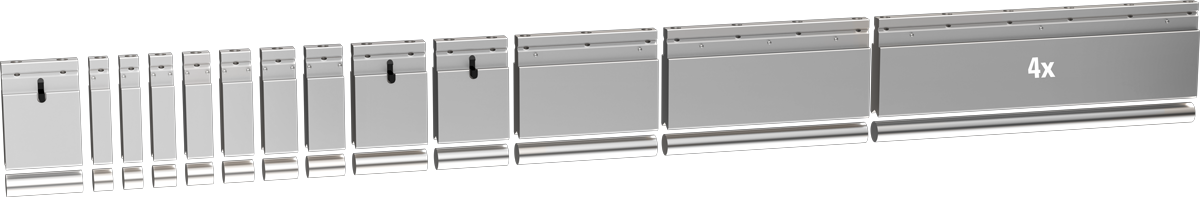

Tool lengthswith safetypins |
|
|
|
|
|
|
| 550 mm sectionalized | 500 mm | 300 mm | 200 mm | |||
|
|
|
 |
 |
 |
||
with SIMPLE CLAMP
|
|
|
|
|||
| 100 mm |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2050 mm Tool Set
|
||||||
 14 Segments |
||||||
|
3050 mm Tool Set
|
||||||
|
16 Segments |
||||||
|
4050 mm Tool Set
|
||||||
|
18 Segments |
||||||
Specifications
