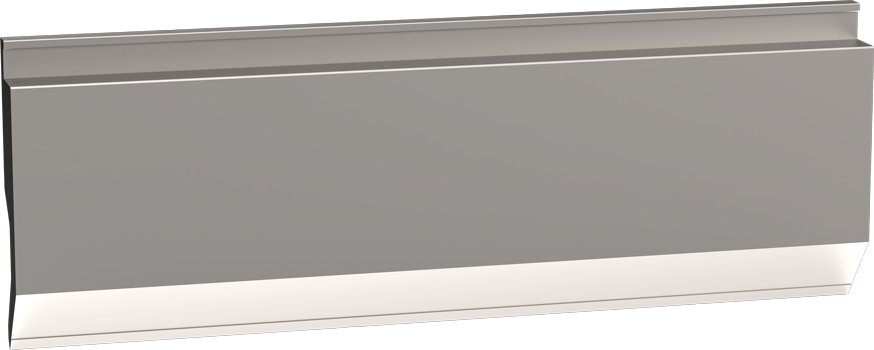

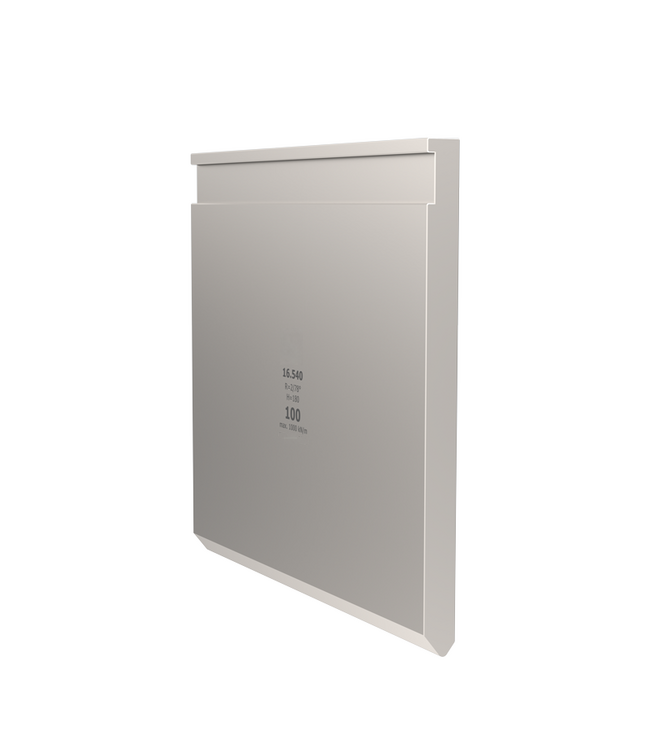

TYD-System LVD type II - Punches/top-tools H = 180 mm
16.540
|
|
| Tooling system | TYD-System LVD Type II |
| Angle | 78° |
| Height | 180 mm |
| Radius | R = 2,0 mm |
| Load | 1000 kN/m max. |
| Material | 42 CrMo4, tempered to 1100 - 1200 N/mm2 |
TYPE II |
|
|
|
550 mm sectionalized |
|
510 mm |
 |
|
 |
|
|
||
loading

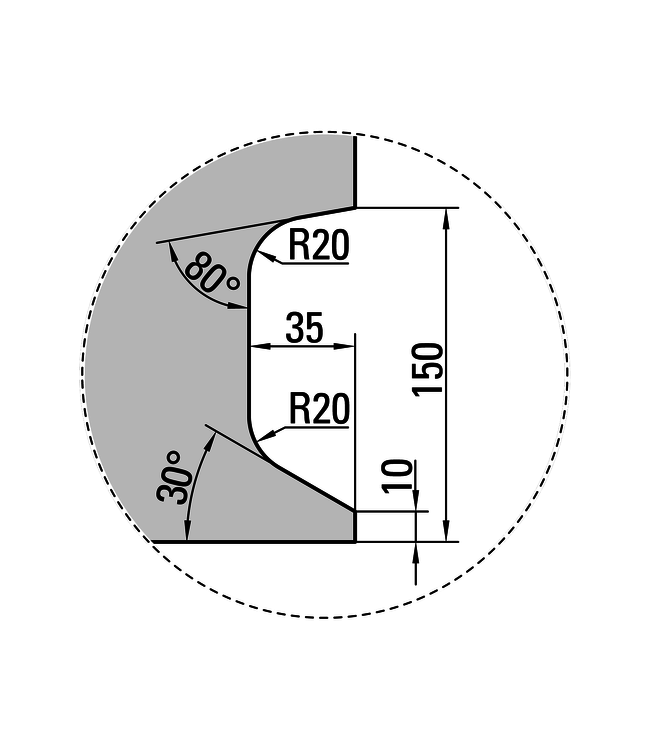

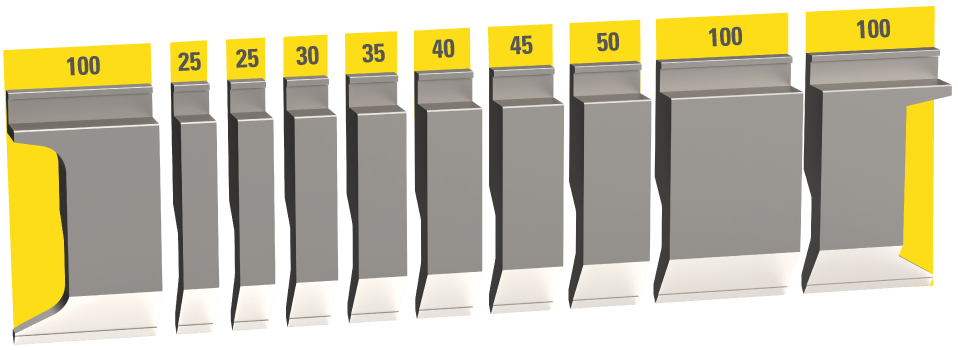

10 Segments, with horn extension left and right
