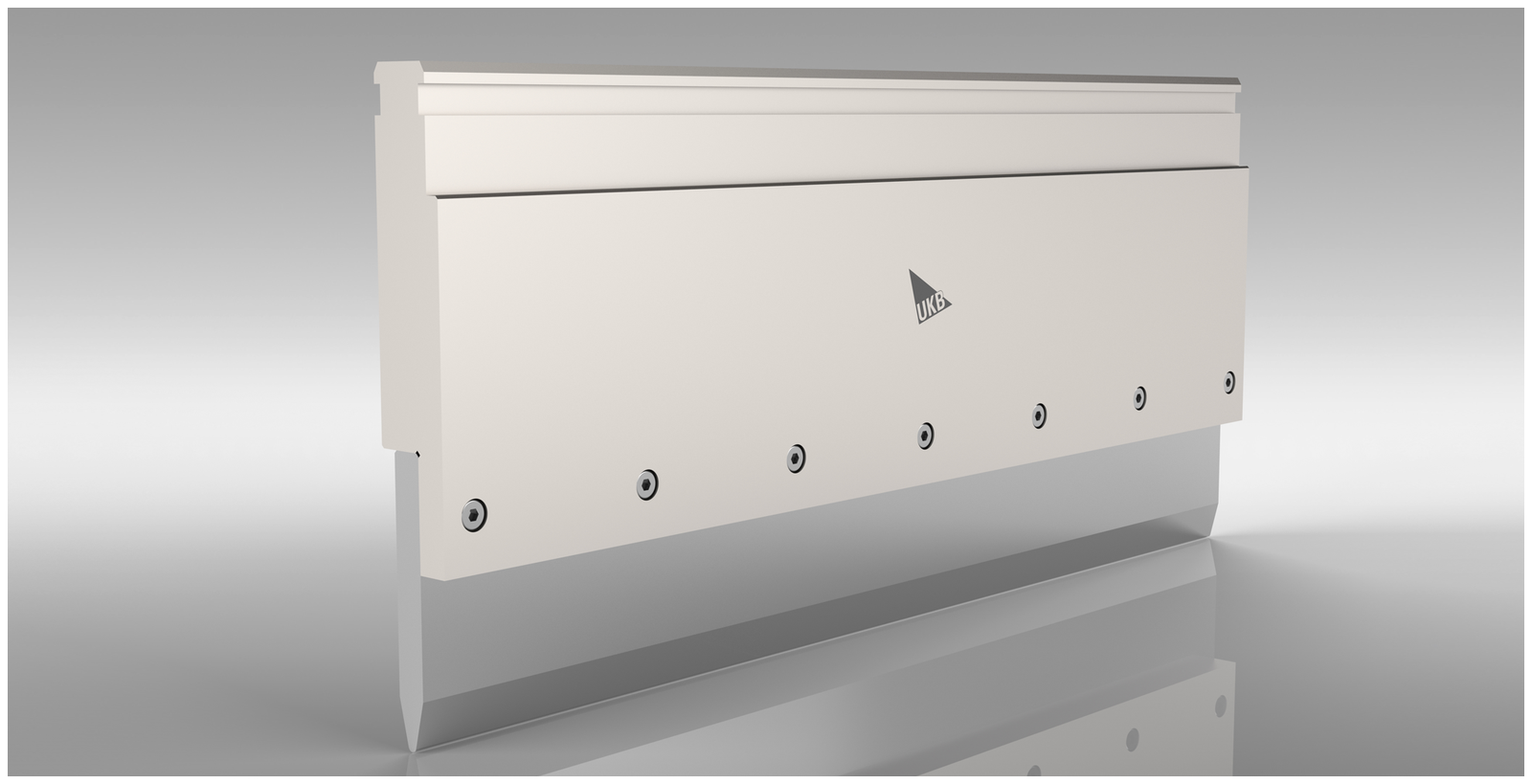

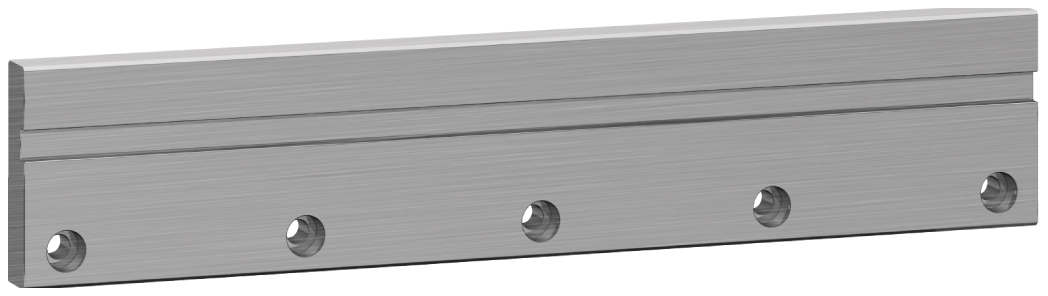

TYD-System EHT - Holder for blades

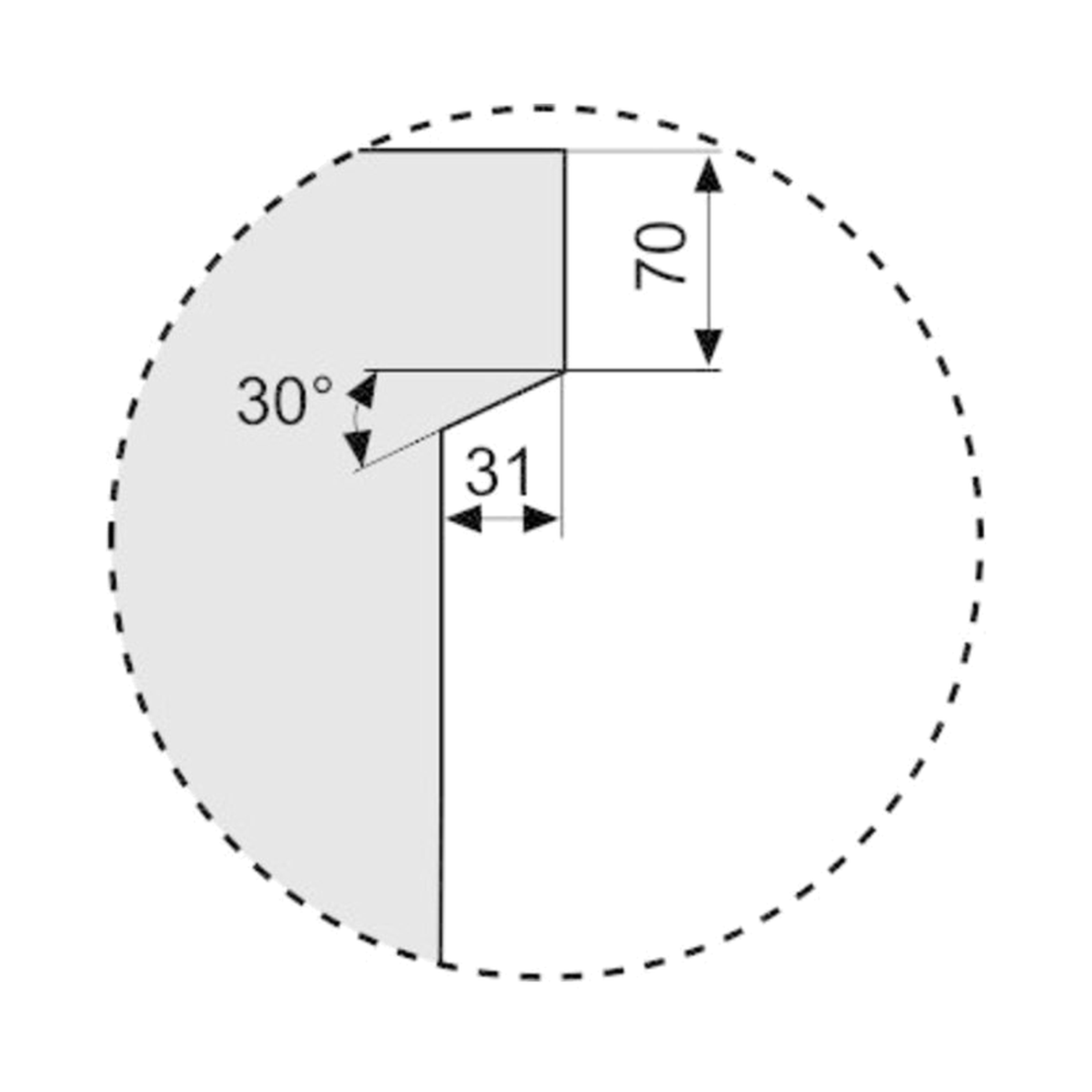

17.070
|
|
| Tooling system | TYD-Systeem EHT |

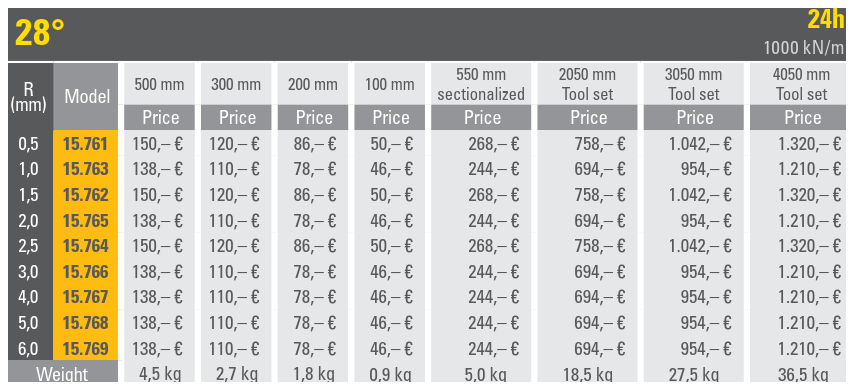

| Radius | R 0,5 - 6,0 mm |
| Height | 160 mm |
| Load | 1000 kN/m max. |
| Material | 42 CrMo4 |
Cost-saving: One holder for different blades
Flexible application by changeable blades R 0,5 – R 6,0
Fast and easy change of the blades

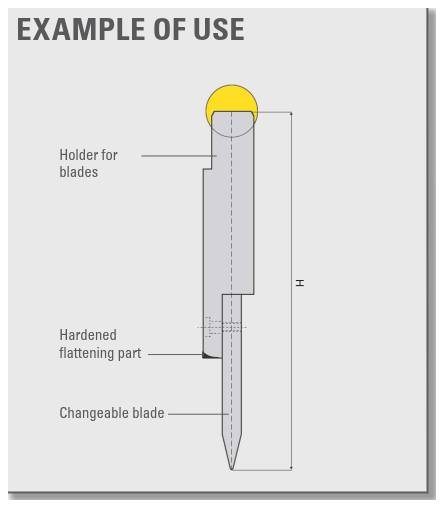

Holder for blades with hardened flattening part

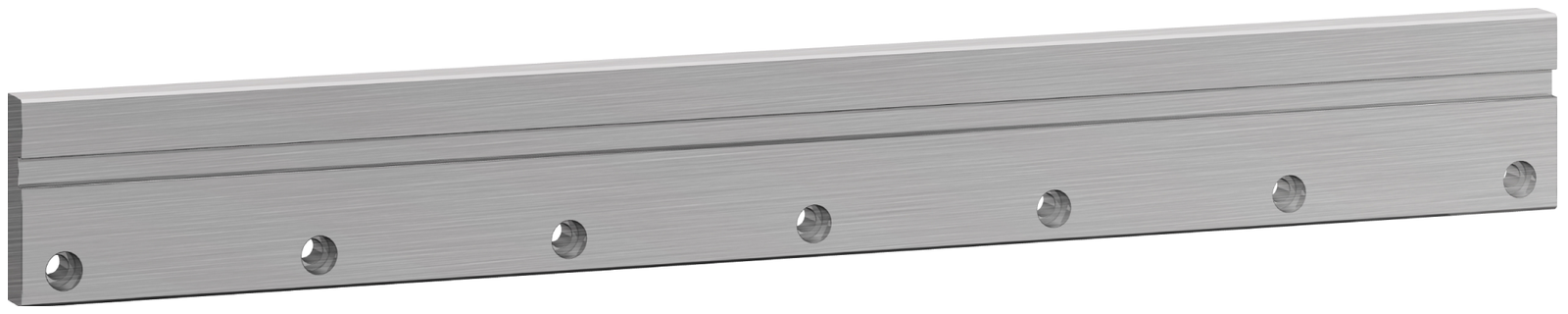

| 500 mm |
|
|||||||
|
|
||||||||
|
300 mm |
|

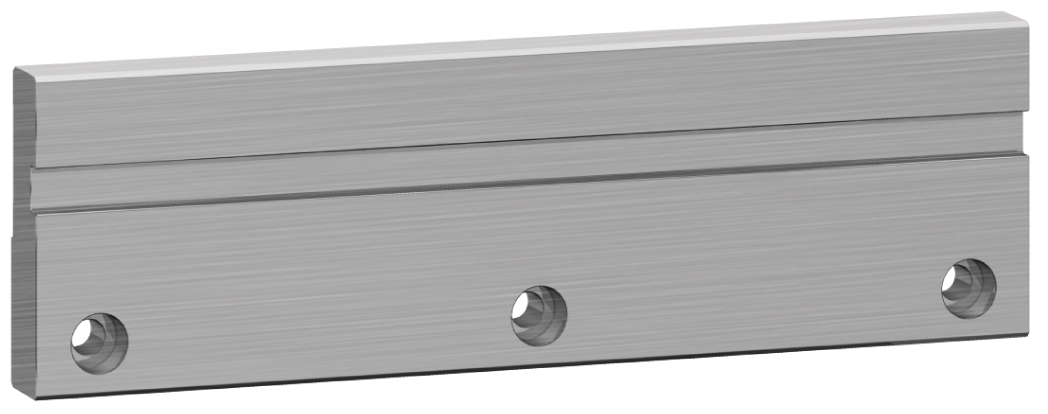

200 mm |
|

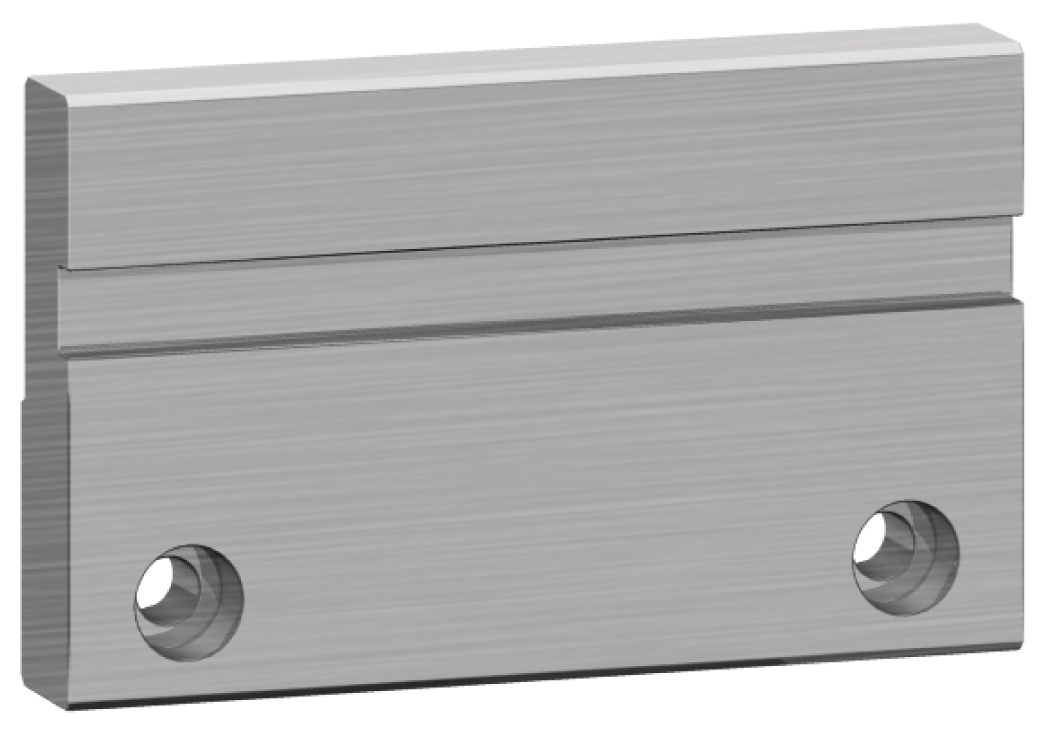

100 mm |
||||
 |
 |
 |
||||||
|

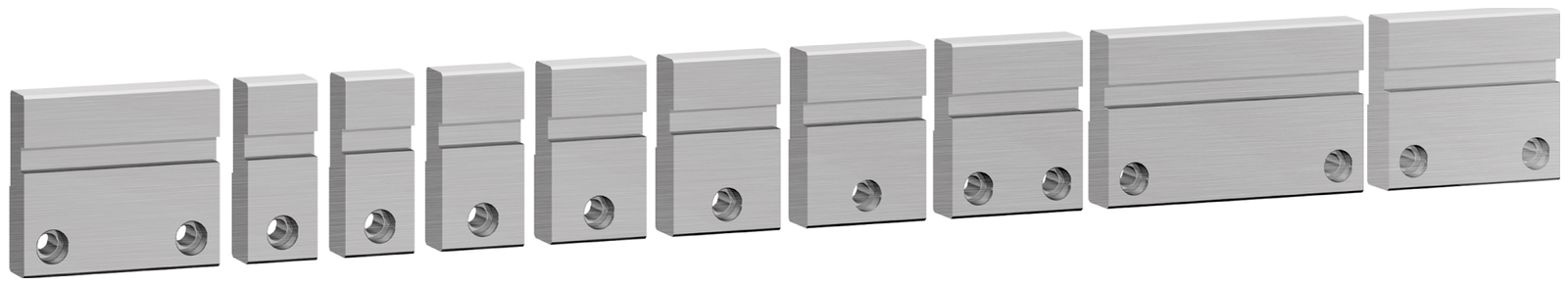

488 mm Sectionalized |
||||||||
|
|
||||||||
|
|
||||||||
blades
|
||||||||
loading
