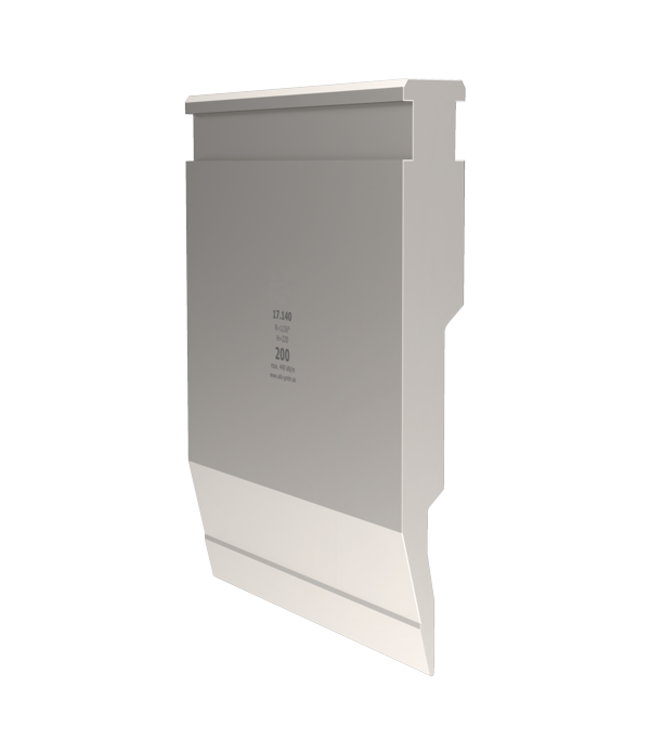

TYD-System EHT - 26° Punches/top-tools
17.140
|
|

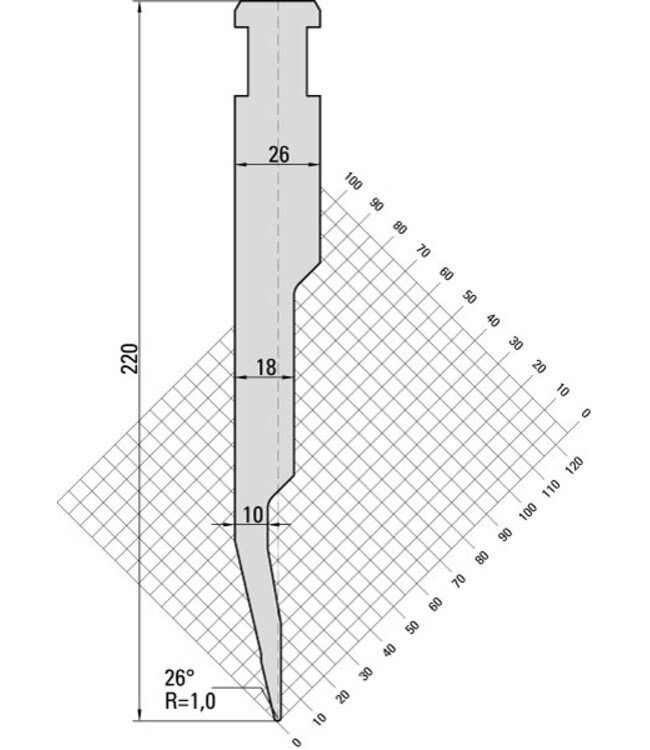

| Tooling system | TYD-System EHT |
| Angle | 26° |
| Radius | R 1,0 mm |
| Height | 220 mm |
| Load | 440 kN/m max. |
We produce individual after your specifications.
Tool lengths |
|
|
PUNCHES/TOP TOOLS |
|
|
| 2050 mm | ||
 |
17 Segments, with horn extension left and right |
|
| 2550 mm | ||
 |
19 Segments, with horn extension left and right |
|
| 3050 mm | ||
 |
21 Segments, with horn extension left and right |
|
| 3550 mm | ||
 |
23 Segments, with horn extension left and right |
|
| 4050 mm | ||
 |
25 Segments, with horn extension left and right |
|
