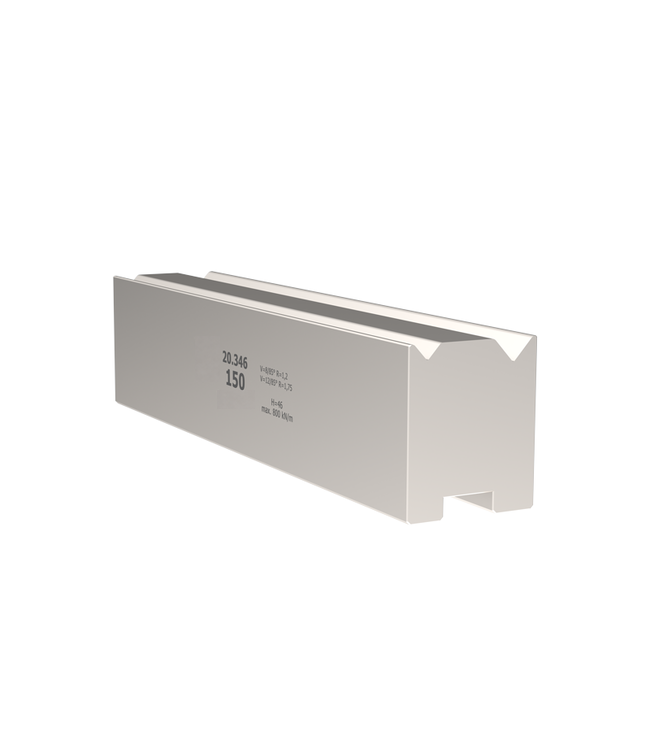

TYD-System Amada - 85° Centrical 2-V dies
20.346
|
|
| Tooling system | TYD-System Amada |
| Angle | 85° |
| Die opening | V = 8/12 mm |
| Intake radius | R = 1,2/1,75 mm |
| Height | 46 mm |
| Load | 800 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |
88° Centrical 2-V die 20.339 on request
| DIES |
|
835 mm |
 |
|
415 mm |
 |
|
800 mm sectionalized
|
 |
loading
9 Segments
