TYD-System Amada - Die blocks

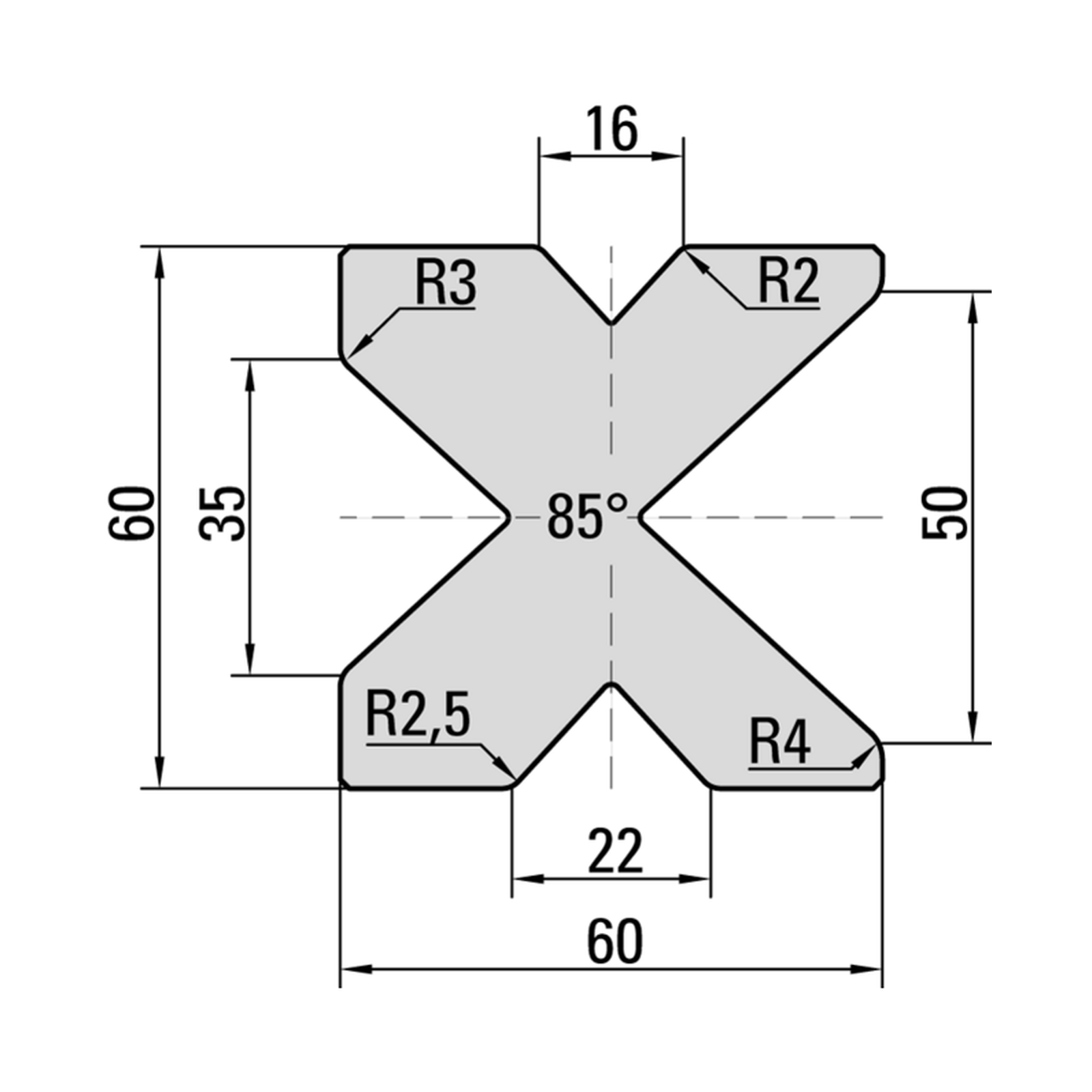

21.207
|
|
| Tooling system | TYD-System Amada |
| Angle | 85° |
| Die opening | V = 16/22/35/50 mm |
| Intake radius | R = 2,0/2,5/3,0/4,0 mm |
| Height | 60 mm |
| Load | 800 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |
| DIES |
|
835 mm |
 |
|
415 mm |
 |
|
800 mm sectionalized
|
 |
loading
9 Segments
