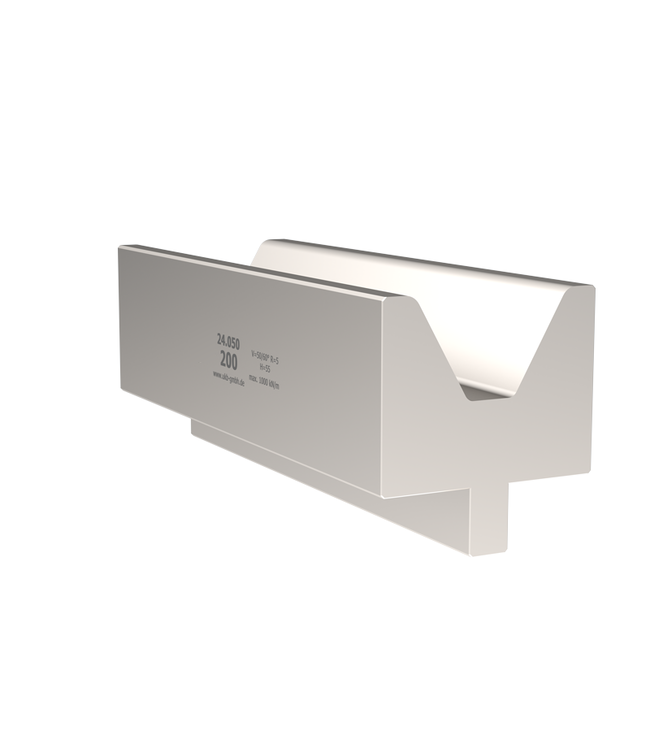

TYD-System Bystronic - 60° Dies, H = 55 mm

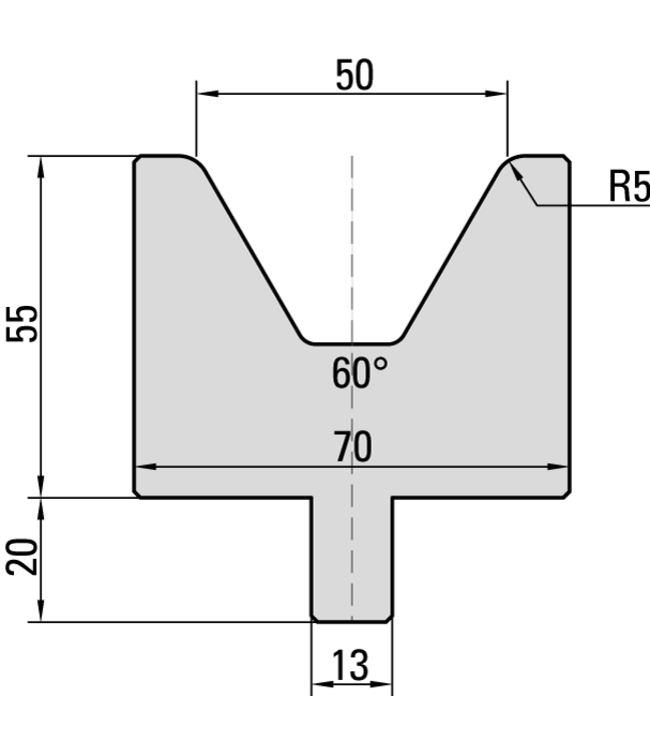

24.050
|
|
| Tooling system | TYD-System Bystronic |
| Angle | 60° |
| Die opening | V = 50 mm |
| Intake radius | R = 5 mm |
| Height | 55 mm |
| Load | 1000 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |
1200 kN/m if the tool clamping has the corresponding load
Tool lengths |
||||||||
| Dies
|
||||||||
|
550 mm sektioniert |
|
515 mm |
|
300 mm |
|
200 mm |
|
100 mm |
 |
 |
 |
 |
 |
||||
|
|
||||||||
loading
9 Segments
