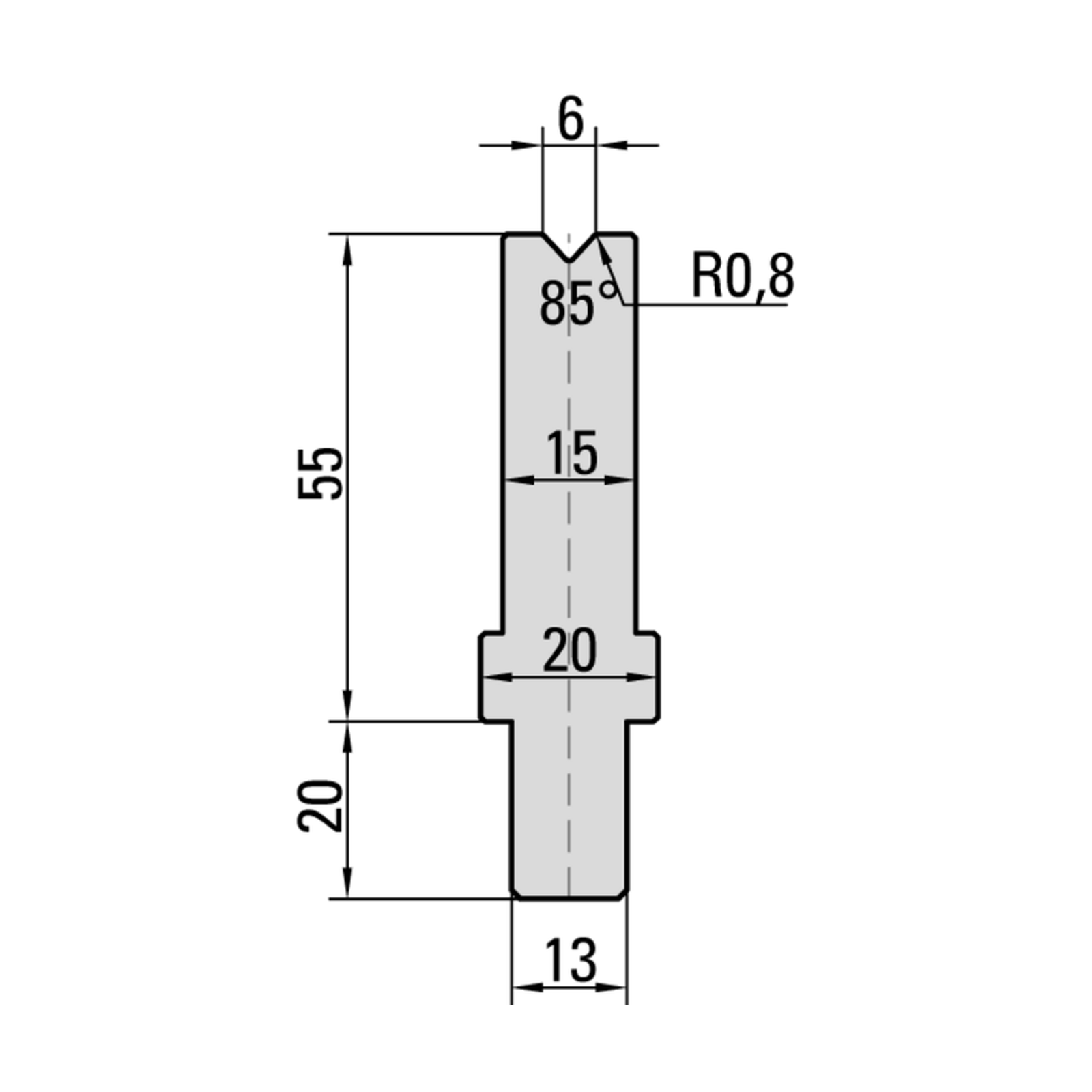

TYD-System Bystronic - 85° Dies, H = 55 mm
24.101
|
|
| Tooling system | TYD-System Bystronic |
| Angle | 85° |
| Die opening | V = 6 mm |
| Intake radius | R = 0,8 mm |
| Height | 55 mm |
| Load | 700 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |

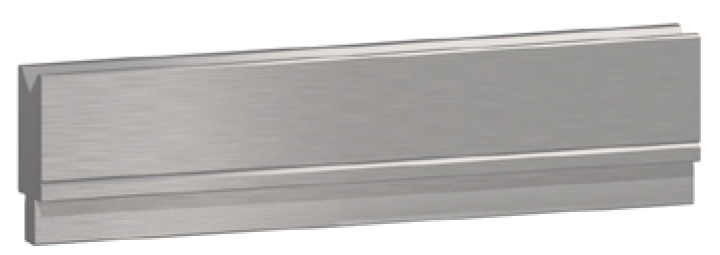

Tool lengths |
||||||||
| Dies
|
||||||||
|

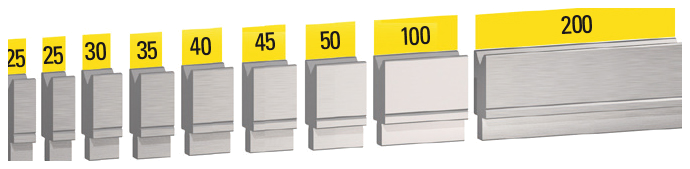

550 mm sektioniert |
|

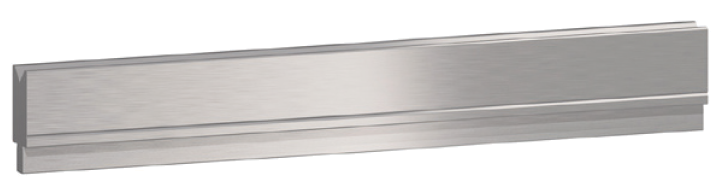

515 mm |
|
300 mm |
|

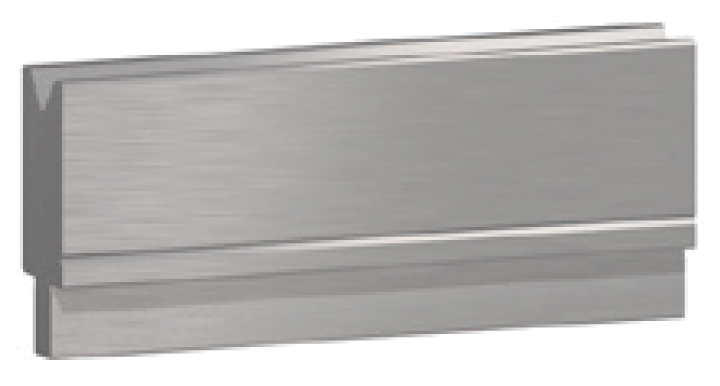

200 mm |
|

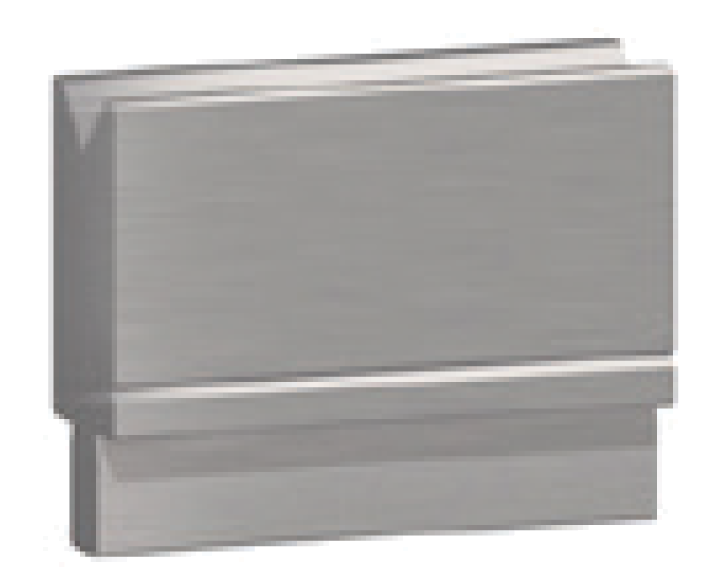

100 mm |
 |
 |
 |
 |
 |
||||
|
|
||||||||
loading
9 Segments
