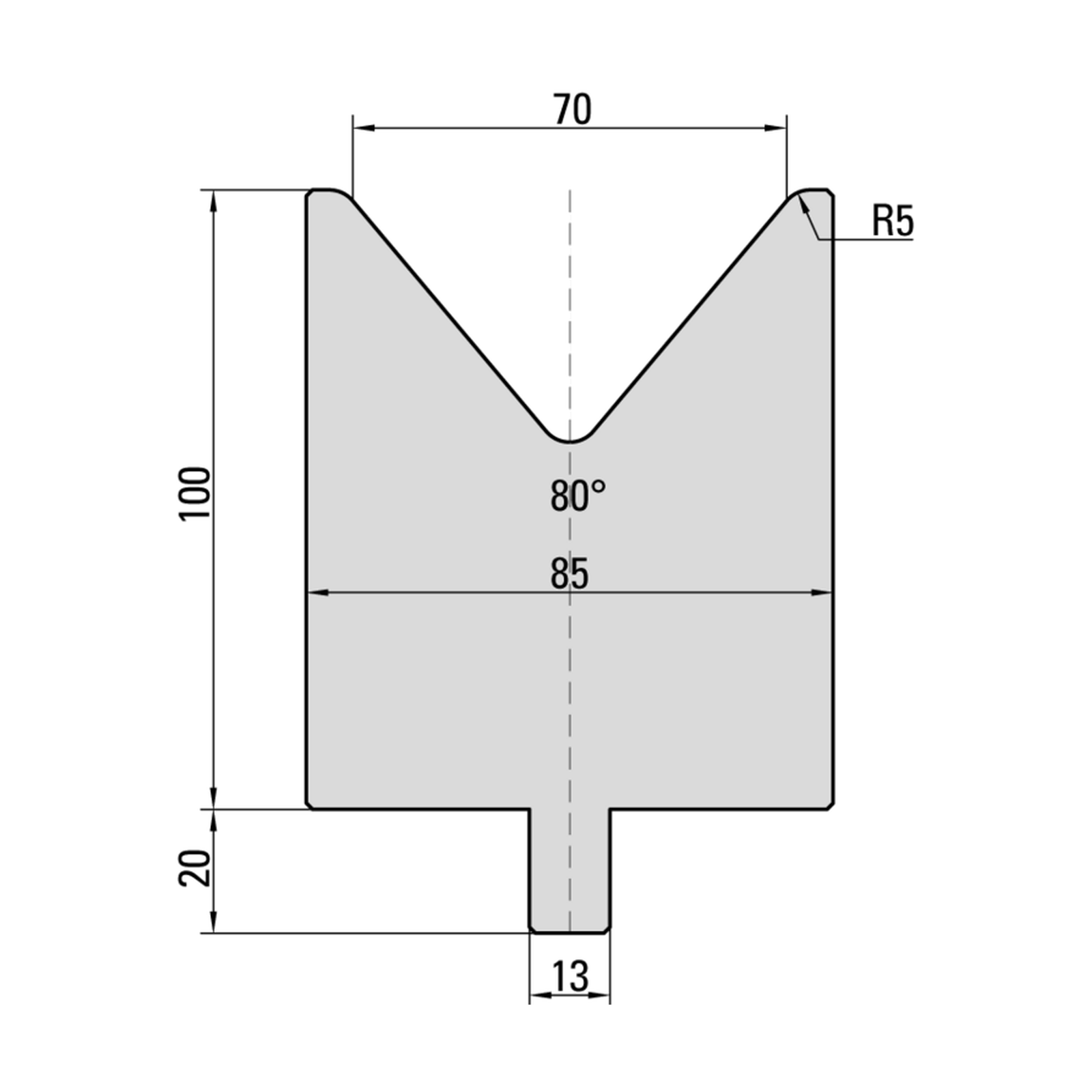

TYD-System Trumpf - 80° dies, H = 100 mm
25.112
|
|
| Tooling system | TYD-System Trumpf/Wila/Bystronic |
| Angle | 80° |
| Die opening | V = 70 mm |
| Intake radius | R = 5 mm |
| Height | 100 mm |
| Load | 1500 kN/m max. |
| Material | 42 CrMo4 |
Tool lengths |
|||||||||
DIES
|
|||||||||
|

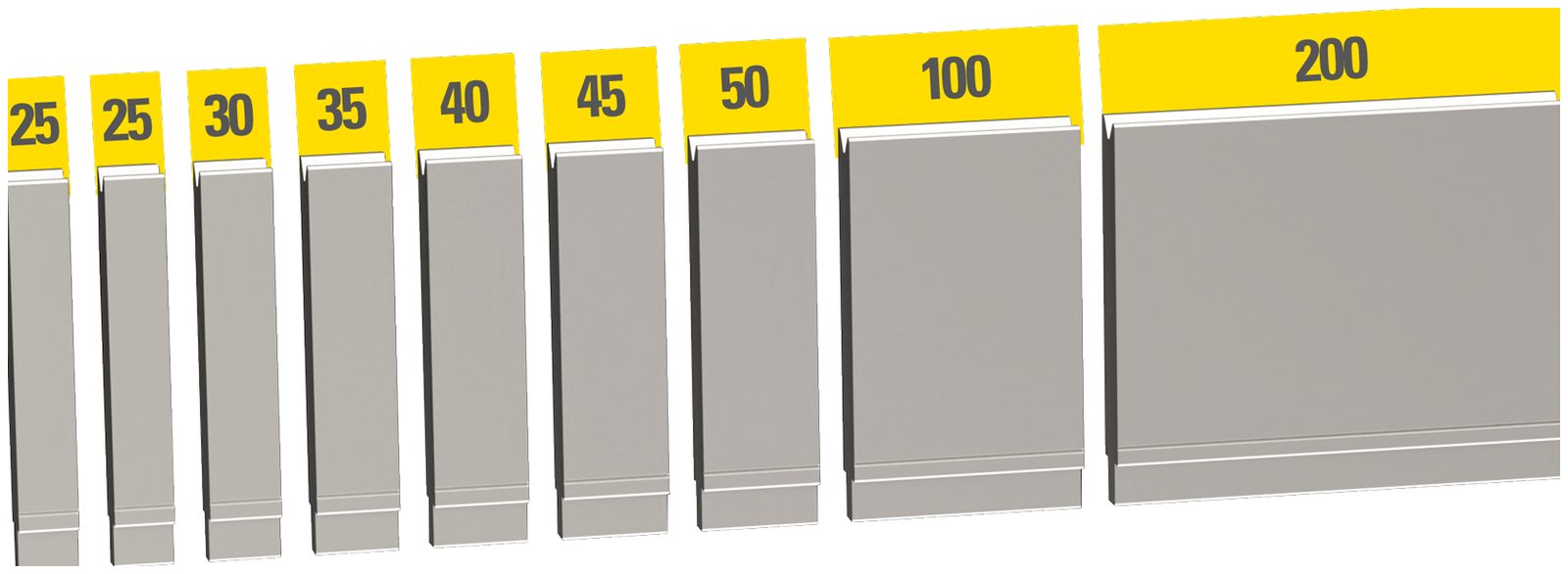

550 mm sectionalized |
|

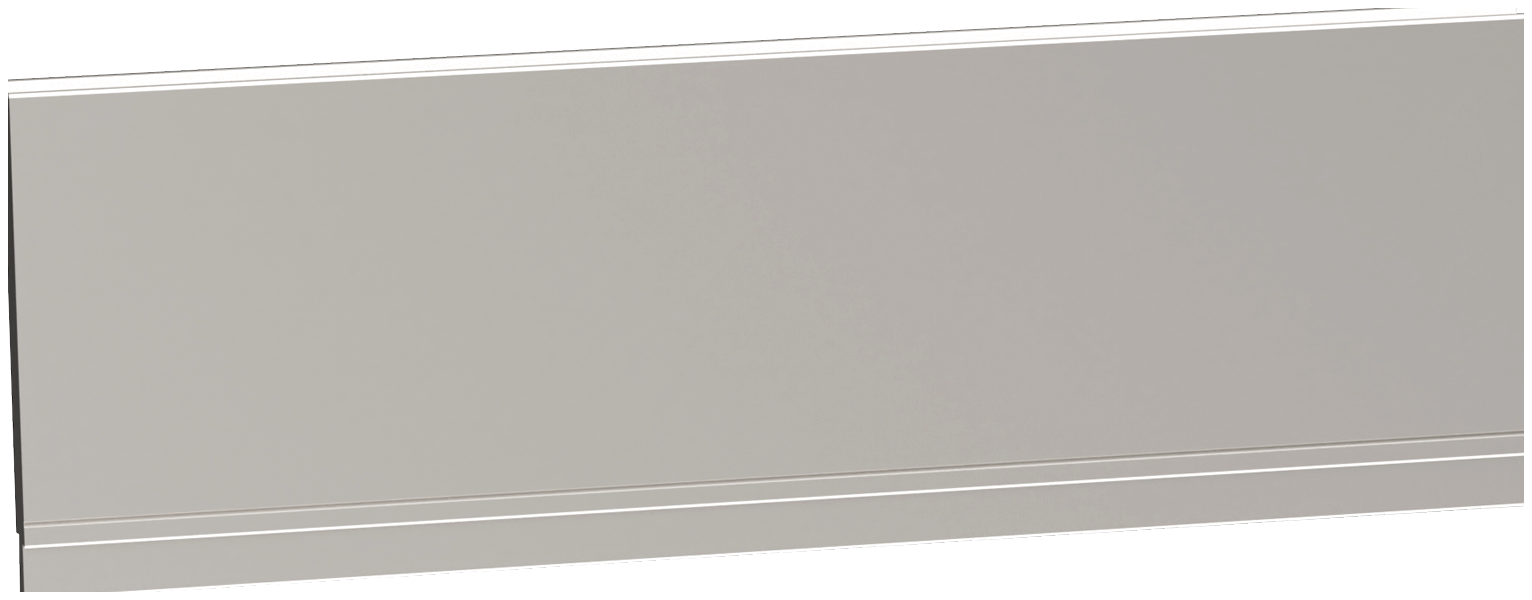

500 mm |

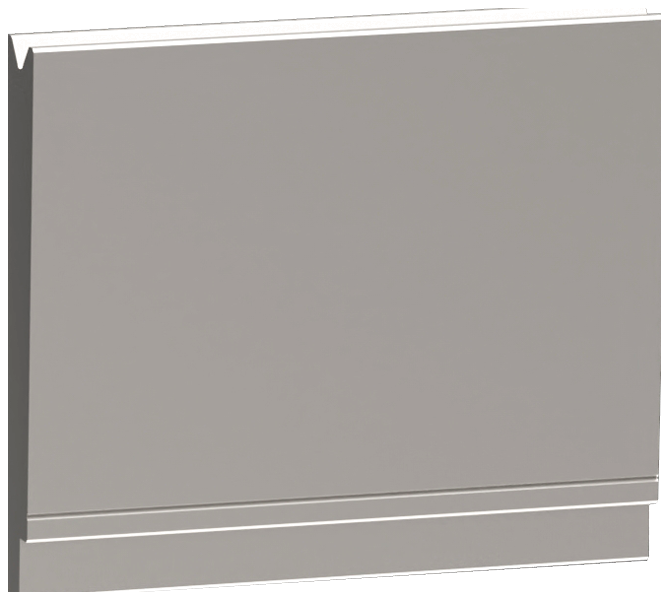

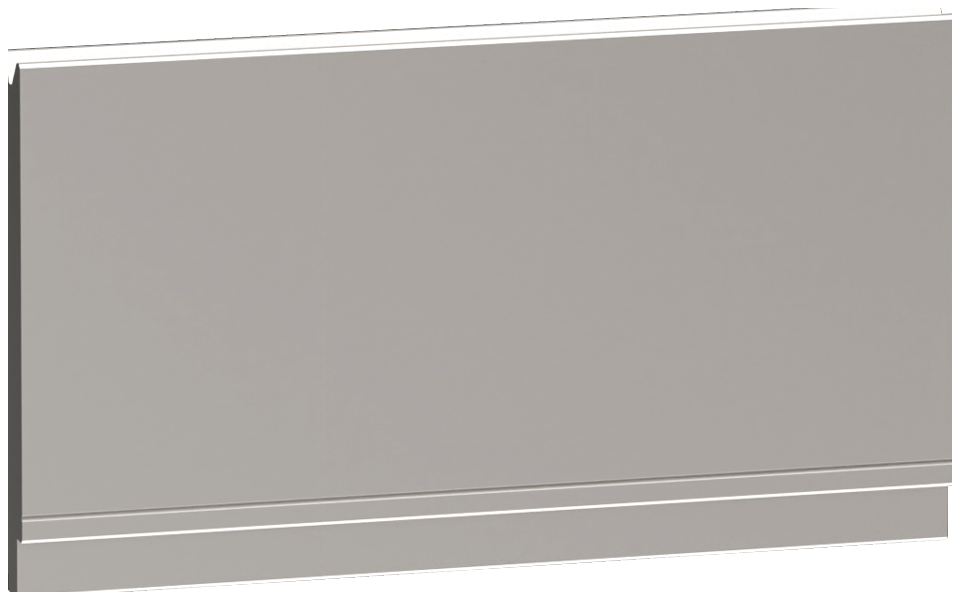

300 mm | 200 mm |
|

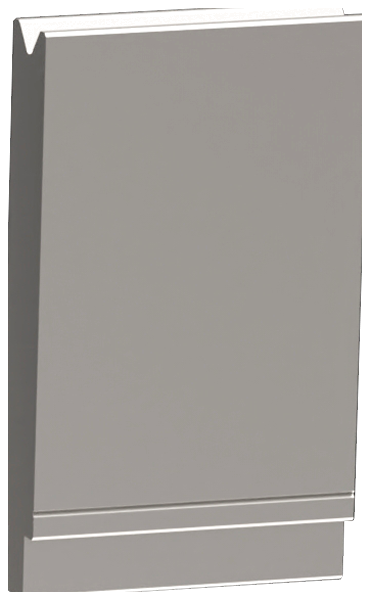

100 mm | |||
|
|
|
|
 |
|
|
 |
|||
 9 Segments |
|||||||||

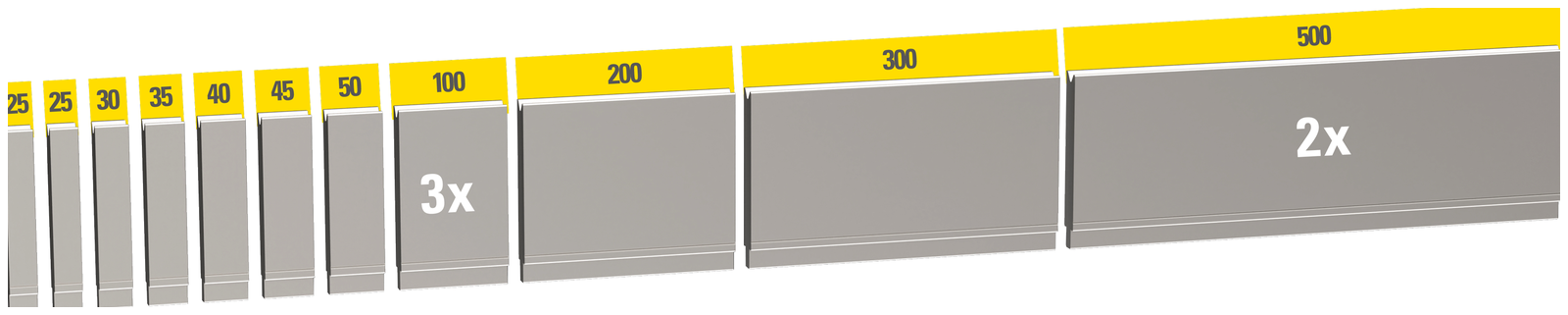

| 2050 mm Tool Set | |||||||||
|
|
|||||||||
| 14 Segments |
|||||||||

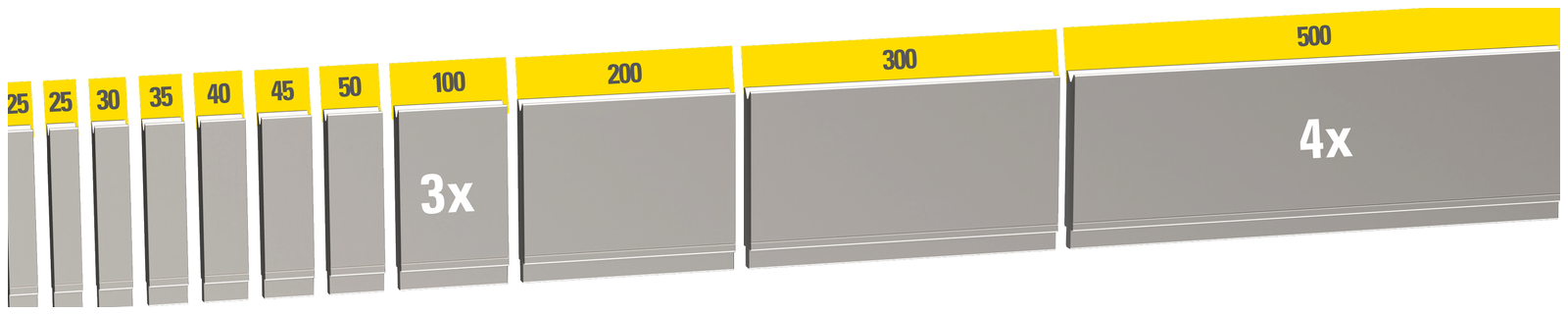

| 3050 mm Tool Set | |||||||||
|
|
|||||||||
| 16 Segments |
|||||||||

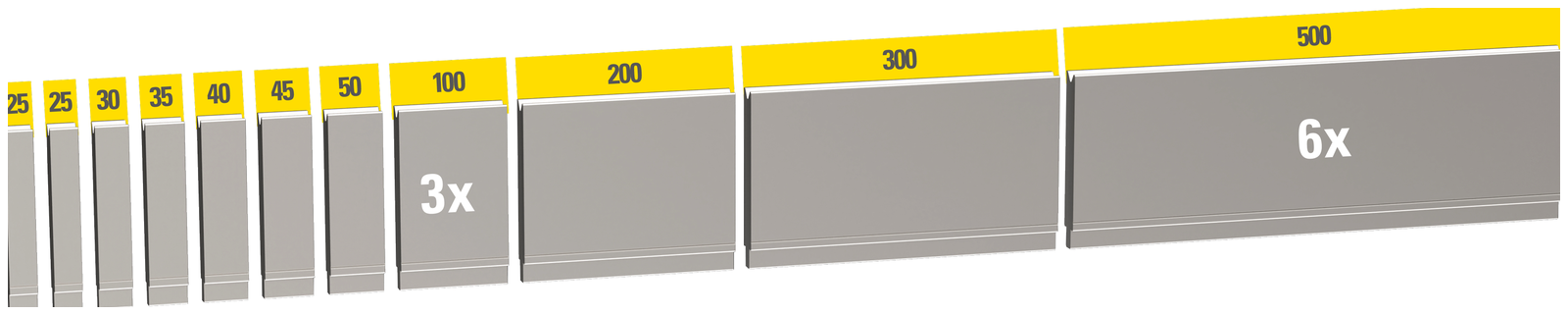

| 4050 mm Tool Set | |||||||||
|
|
|||||||||
| 18 Segments |
|||||||||
