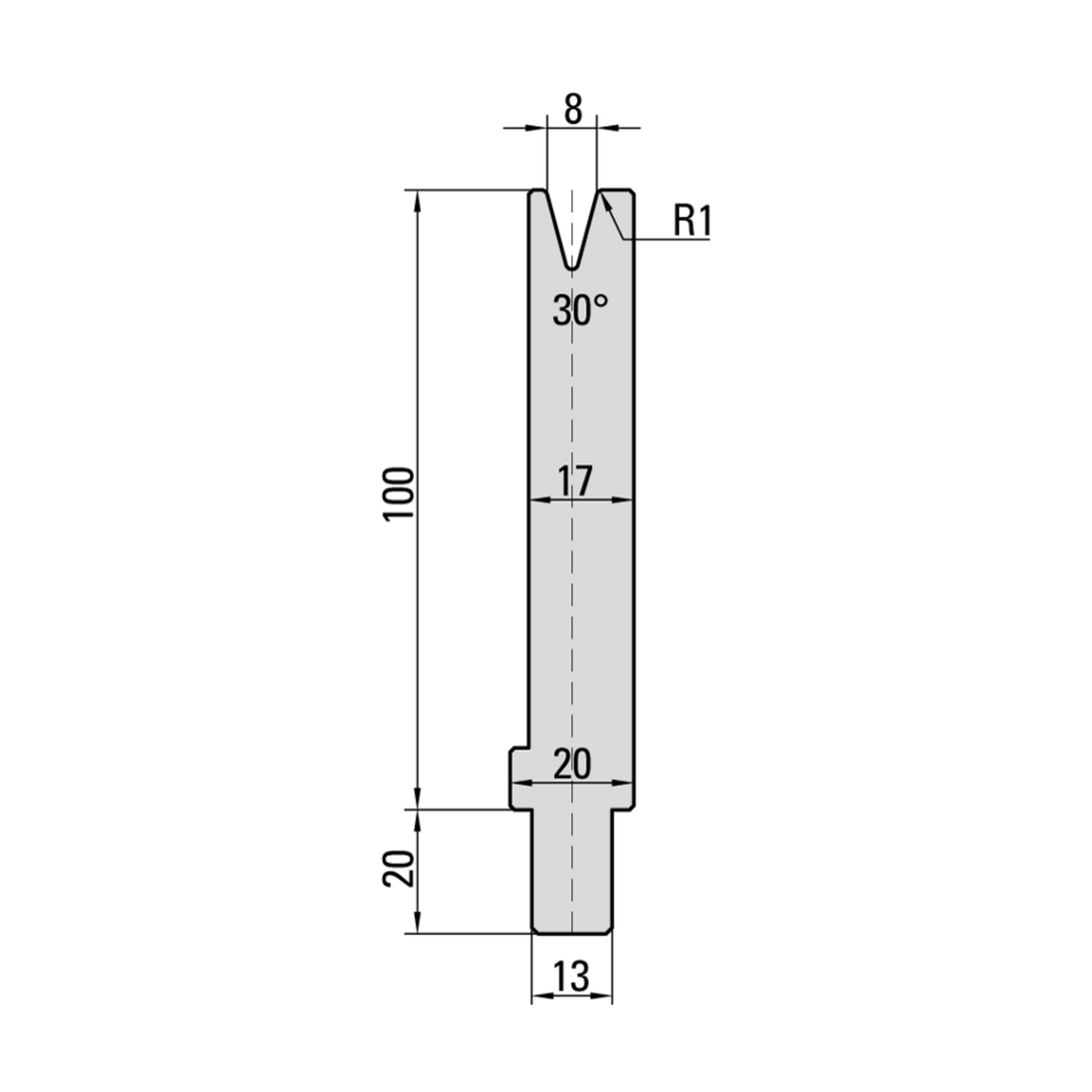

TYD-System Trumpf - 30° dies, H = 100 mm
25.502
|
|
| Tooling system | TYD-System Trumpf/Wila/Bystronic |
| Angle | 30° |
| Die opening | V = 8 mm |
| Intake radius | R = 1 mm |
| Height | 100 mm |
| Load | 200 kN/m max. |
| Material | 42 CrMo4 |
Dies can be used with an additional drill hole 70.800
with screwable flattening die 60.120!
Tool lengths |
|||||||||
DIES
|
|||||||||
|
550 mm sectionalized |
|
500 mm |
300 mm | 200 mm |
|
100 mm | |||
|
|
|
|
 |
|
|
 |
|||
 9 Segments |
|||||||||
| 2050 mm Tool Set | |||||||||
|
|
|||||||||
| 14 Segments |
|||||||||
| 3050 mm Tool Set | |||||||||
|
|
|||||||||
| 16 Segments |
|||||||||
| 4050 mm Tool Set | |||||||||
|
|
|||||||||
| 18 Segments |
|||||||||
