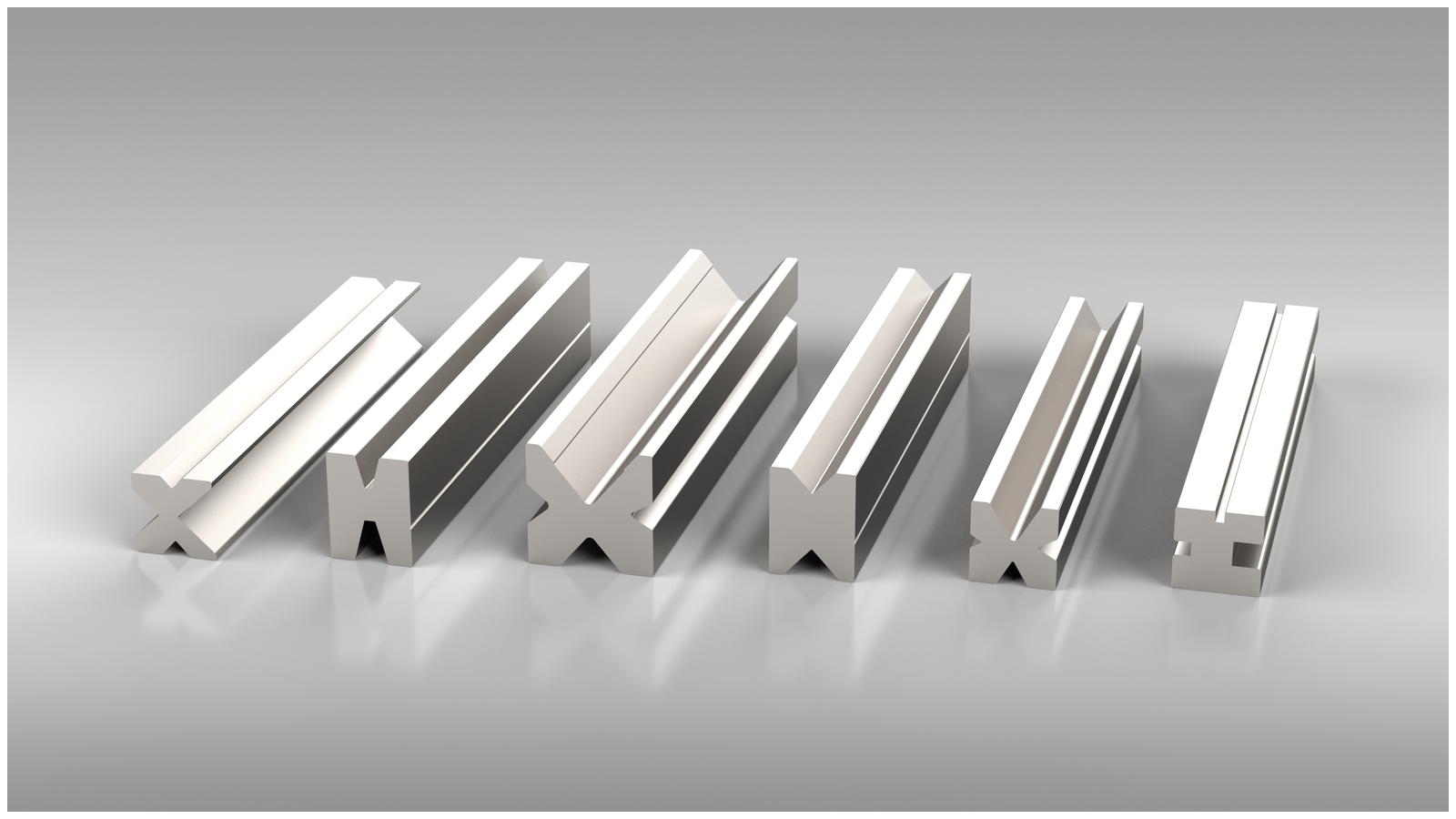

TYD-System Amada - Die blocks
28.820
|
|
| Tooling system | TYD-System Amada |
| Angle | 60°/80° |
| Die opening | V = 20/30/45/70 mm |
| Intake radius | R = 2,0/4,0/4,0/5,0 mm |
| Height | 90 mm |
| Load | 800 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |
| DIES |
|
835 mm |
 |
|
415 mm |
 |
|
800 mm sectionalized
|
 |
loading
9 Segments
