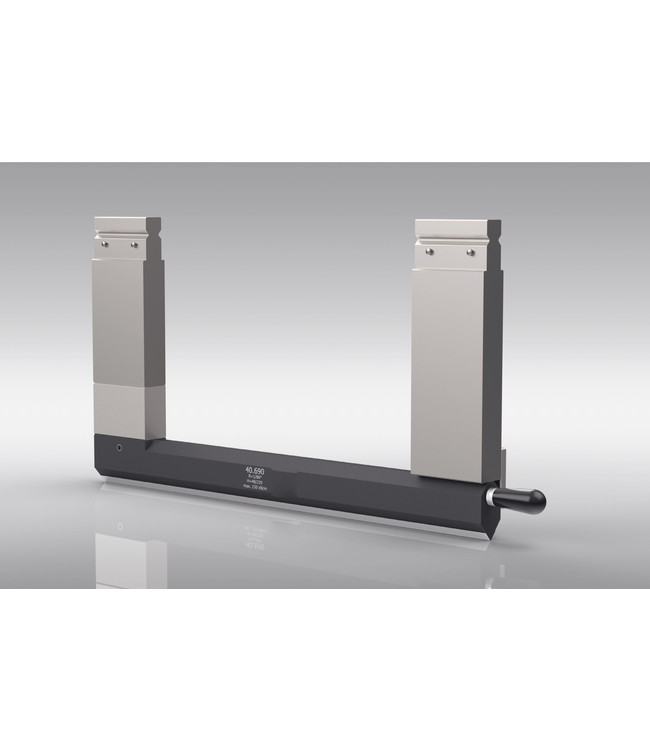

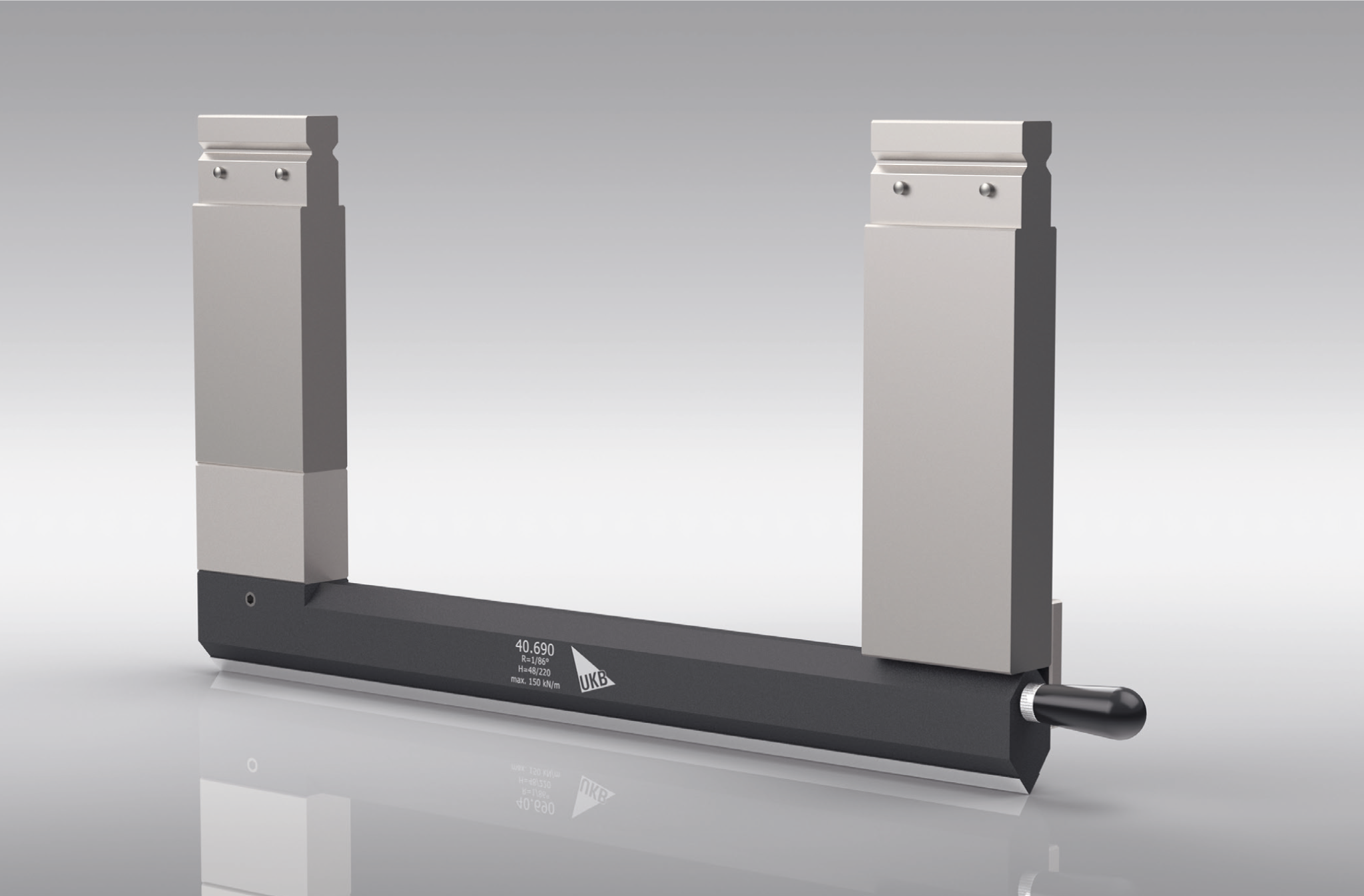

86° Window punch/top-tool for closed boxes "Rotax®"
40.690 |
|
| Tooling system | TYD-System Trumpf |
| Angle | 86° |
| Radius | R 1,0 mm |
| Height | 220 mm |
| Load | 150 kN/m max. |
| Material | C45, 650 - 800 N/mm2 |
Bending of closed profiles Bending of high U-profiles Easy removal by opening the pivot arm Individual production possible
