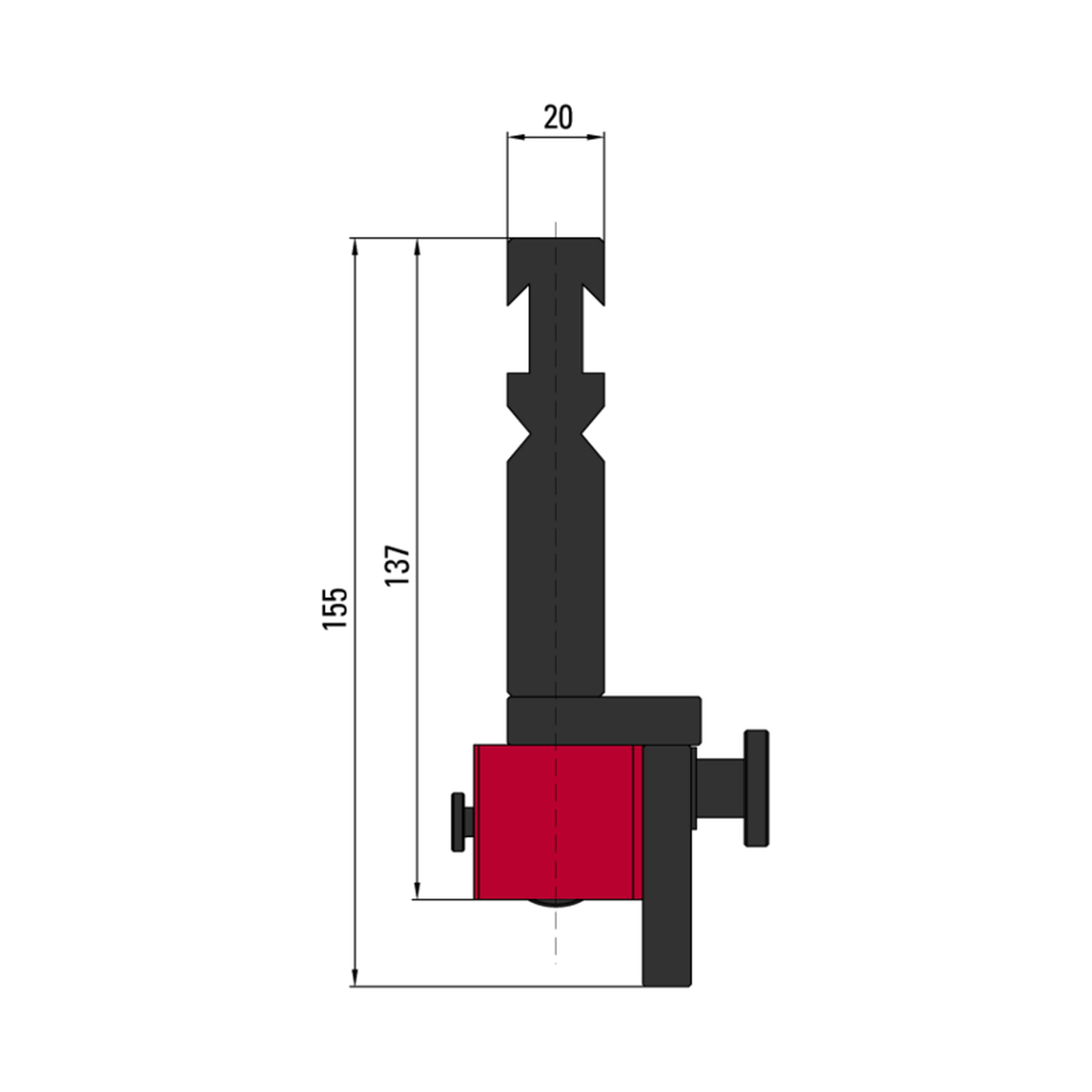

40.982

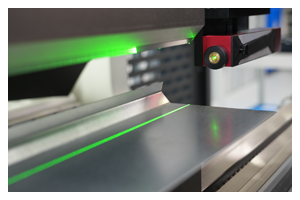

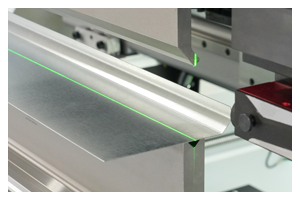

The TYD-Laser Tracker projects a clearly visible laser line onto the sheet metal and precisely displays the bending line.
This enables fast, accurate, and process‑reliable positioning of sheet metal parts on the press brake.

Ideally suited for:

▶ Radius bending / step bending
▶ Conical bending (e.g. funnels and containers)
▶ Sheet metal parts with beadings for precise positioning
▶ Irregular profiles that are difficult to align with the back gauges
▶ Marked bend lines (laser markings and reference markings)

Achieve more than 60% time savings when positioning your sheet metal parts.

Product advantages:

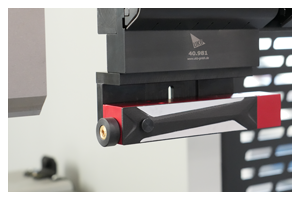

▶ Mounts directly onto the press brake
▶ Quick and easy assembly and disassembly
▶ Battery operation for maximum flexibility
▶  Universally applicable thanks to quick positioning on different press brakes
▶ Ideal for long press brakes: use with one precisely aligned device or with two devices mounted at both ends of the press brake

LASER – TECHNICAL DATA

• Wavelength: 532 nm
• Output power: < 5 mW
• Operating mode: Continuous operation
• Input voltage: 3.7 V DC
• Operating current: < 300 mA
   (< 600 mA for 50 mW device)
• Operating temperature: 20 °C – 30 °C
• Beam shape: Line
  (90° beam angle)
• Beam divergence: 1.4 mrad
• Average service life:
  > 4,000 hours
• Housing material: Brass
• Length: 31 mm
• Diameter: 12 mm

BATTERY – TECHNICAL DATA

• Keenstone 26650 universal
   battery charger with 2 charging slots
• LCD display
• 2 rechargeable batteries included
   in delivery
• Battery type: Li-Ion SAMSUNG
   INR18650-35E, 3.6 V, 300

VISIBILITY OF THE LASER BEAM (OPERATING TIME)

• Continuous operation: 10 hours
• Batteries included: 2
• Operating time of the included
   batteries: 10 hours each
