TYD-System Trumpf - Screwable flattening dies, H = 150 mm
60.130
|
|
| Tooling system | TYD-System Trumpf/Wila/Bystronic |
| Height | 150 mm |
| Width | 28,9 mm |
| Load | 1200 kN/m max. |
| Material | 42 CrMo4 |

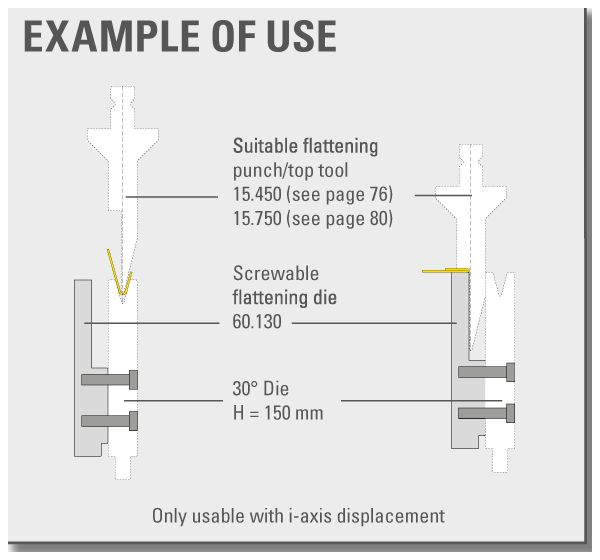

Dies can be used with an additional drill hole 70.810
with screwable flattening die!
Tool lengths |
|||||||||
DIES |
|||||||||
|
550 mm sectionalized |
|
500 mm |
300 mm | 200 mm |
|
100 mm | |||
|
|
|
|
 |
|
|
 |
|||
 9 Segments |
|||||||||
| 2050 mm Tool Set | |||||||||
|
|
|||||||||
| 14 Segments |
|||||||||
| 3050 mm Tool Set | |||||||||
|
|
|||||||||
| 16 Segments |
|||||||||
| 4050 mm Tool Set | |||||||||
|
|
|||||||||
| 18 Segments |
|||||||||
