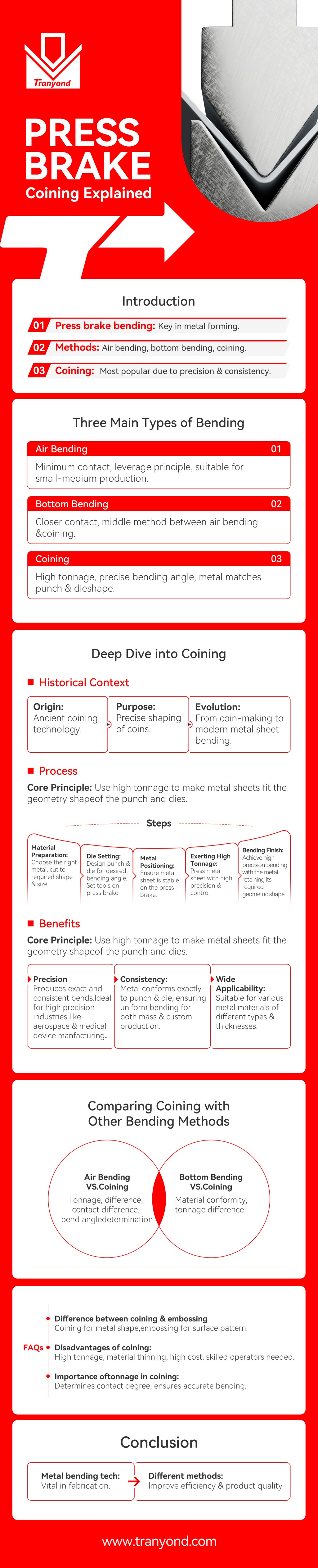

Press brake coining uses high pressure and purpose-matched tooling to force the sheet into a defined bend geometry. It differs from air bending and bottoming in contact and loading. Choose it only when the required geometry justifies the dedicated tooling and the complete machine-to-tool load path is approved for the operation.
Air bending, bottoming and coining are different methods
| Method | How the bend is established | Selection implications |
|---|---|---|
| Air bending | The punch pushes the sheet into the opening without fully enclosing it between tool faces | Punch penetration, material and die geometry determine the result; different angles may use the same suitable tooling |
| Bottoming | The sheet contacts the tooling more fully near the target geometry | Tool angles, material and process-specific force need review |
| Coining | High pressure drives the material to conform closely to a dedicated tool geometry | Dedicated angle/radius tooling and higher loads require explicit approval |
What happens during coining
The punch and die are selected for the intended angle and radius. As the press applies the specified load, contact constrains the bend more fully than in air bending. The high contact pressure changes the way the material conforms and can reduce sensitivity to some springback effects.
Coining should not be described as universally springback-free or as a way to obtain perfect accuracy without inspection. The actual result still depends on material variation, tool geometry and condition, force control and the validated setup.
Why the force assessment is essential
The TRUMPF bending tools catalogue describes dedicated tooling for coining and substantially greater force than air bending. The required force varies with the material and sheet thickness. Do not turn a general comparison factor into a machine setting.
- Use process-specific data for the actual material, thickness, bend length, angle and radius.
- Check the press brake, punch, die, clamps, holders and adapters together.
- Confirm local-load restrictions and the effective loaded length.
- Keep ratings and calculations in consistent units.
- Obtain approval for the complete setup before applying a coining load.
When coining may be evaluated
Coining may be considered when the drawing and process assessment call for closer conformity to a particular tool geometry. It is a specialist choice, rather than the default answer to every angular tolerance problem.
Before investing in dedicated tools, compare whether a validated air-bending or bottoming process can meet the required result. Include available machine capacity, tool cost, changeover frequency, finish and material-formability limits.
Limitations to include in the decision
- Higher load can exceed the limits of a machine or component that is suitable for air bending.
- A dedicated angle and radius can reduce tooling flexibility across different parts.
- High contact pressure may produce impressions or affect a cosmetic coating.
- Material deformation at the bend needs review for thinning, cracking and dimensional effects.
- Tool wear and condition must be monitored against the validated process.
A controlled qualification checklist
- Define the part requirement. State angle, inside radius, dimensions, material, thickness tolerance and surface acceptance.
- Confirm the method and tool set. Obtain the actual punch and die drawings, interface details and coining suitability.
- Approve the load calculation. Review the machine and every component, including short-section and off-centre restrictions.
- Plan the safe setup. Follow the machine instructions and facility procedure for tooling installation, clearance and safeguarding.
- Trial representative material. Measure angle, radius, dimensions, surface condition and signs of cracking or thinning.
- Record repeatability. Retain the material identification, approved program, inspection results and acceptance limits.
Frequently asked questions
Is coining the same as bottoming?
No. Both involve more tool contact than air bending, but their intended contact and load conditions differ. Use the machine and tool manufacturer’s method definitions and ratings.
Can any V-die be used for coining?
No. Confirm the exact punch and die combination is designed and rated for the proposed coining application.
How many times more force does coining need?
There is no single factor that approves every setup. Use the manufacturer’s process data and calculation for the actual material, geometry and bend length.
Does coining eliminate every springback or tolerance problem?
No. Qualify the result with representative material and repeated measurements. Do not substitute a general claim for demonstrated process capability.
Is coining the same as embossing?
In this guide, coining refers to a press brake bending method. Embossing describes forming a relief or surface feature; its tooling and process requirements must be assessed separately.
Plan your tooling request
Specify that coining is under consideration, and supply the required radius, angle and material details for a dedicated load review. Browse Tranyond press brake tooling or contact Tranyond with your drawing and machine details.
